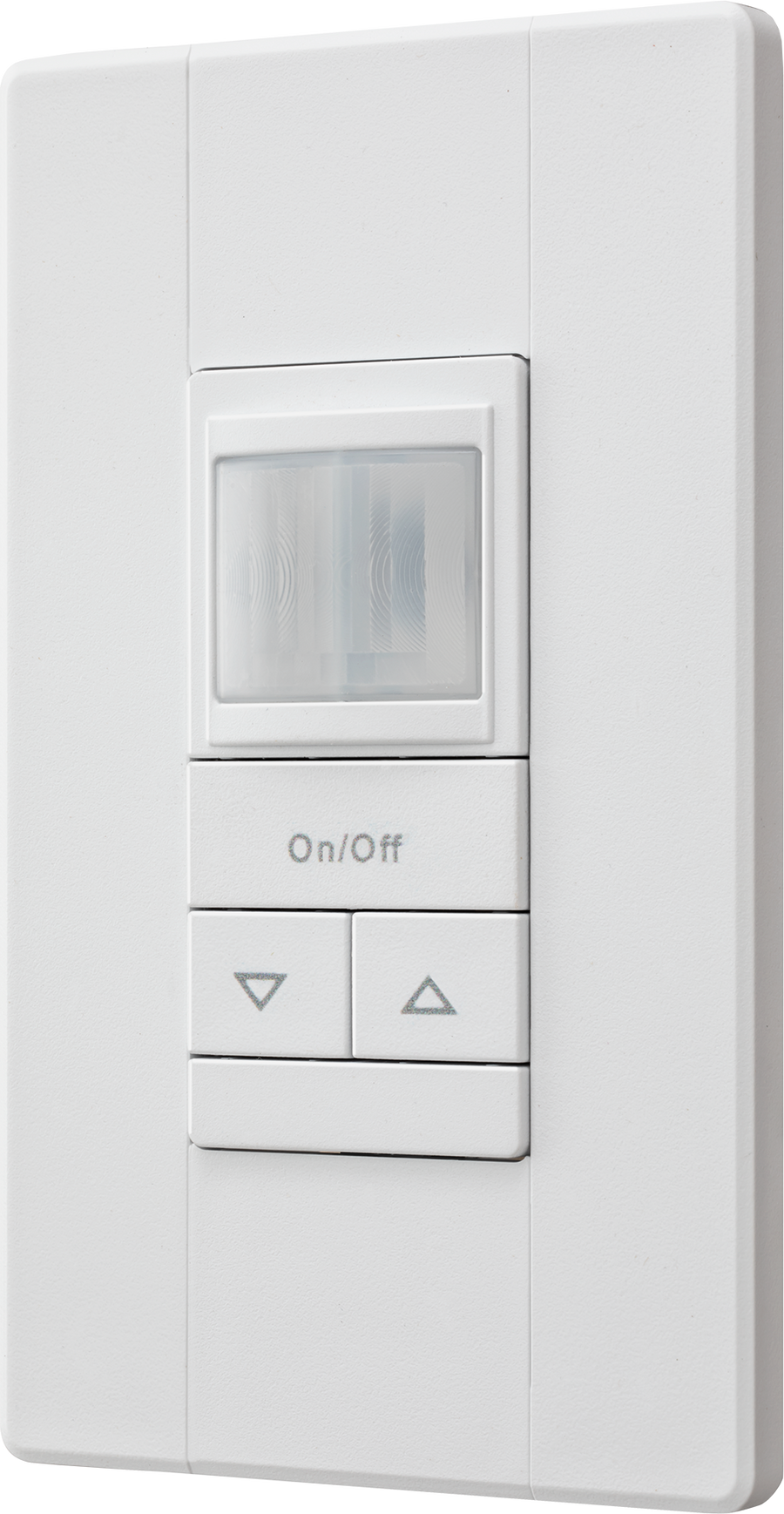

Acuity Brands nLight Low Voltage Wall Switch Sensor, White, NWSXA PDT LV WH
- ROCK SKU: NLI-NWSXA PDT LV WH
- UPC: 194994566748
- MFG Part #: NWSXA PDT LV WH
Product dimensions
-
Width:
1.7500 IN
-
Height:
2.6250 IN
-
Depth:
0.6250 IN
-
Weight:
0.481 LBS
The nWSXA series nLight wall switch occupancy sensor provides a simple control solution for a small room, in particular one utilizing nLight enabled digital luminaires. Capable of detecting small motion up to 20 ft (6.10 m), this sensor is perfect for private offices, private rest rooms, copy rooms, closets or any small enclosed space.
- Available as Passive Infrared (PIR), or PIR/Microphonics Dual Technology (PDT), this stylish sesnsor can be programmed locally, via the front push button(s), or remotely via the nLight software solutions. The nWSXA includes an integrated photocell (inhibit only — disabled by default).
- FEATURES
- 100% digitial PIR detection, vandal resistant lens standard, includes screwless wall plate
- Push-button programmable, adjustable time delays, multiple operating modes
- Multiple nWSXA sensors or WallPods can be used in 3 way(or greater) configurations w/o traveler wires
- Photocell standard (inhibit only — disabled by default)
- Broadcasts occupancy, photocell, and switch information over a local and/or global nLight channel
- Remotely firmware upgradeable
