Acuity Brands nLight Wired Wall Switch, On/Off + Raise/Lower, White, NPODMA DX WH

Acuity Brands nLight Wired Wall Switch, On/Off + Raise/Lower, White, NPODMA DX WH

$141.25

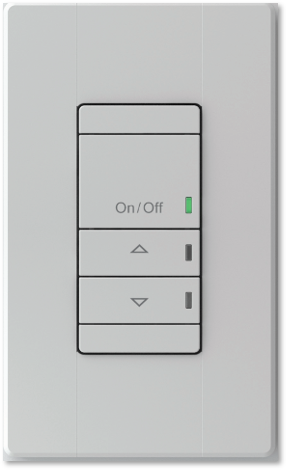

The Acuity Brands NPODMA DX WH (nPODMA WallPod: On/Off & On/Off+Raise/Lower): Single-gang nLight decorator WallPod providing on/off plus raise/lower (dimming) control of an nLight lighting zone over CAT-5e.

  • Single-gang nLight-enabled decorator wall switch
  • Soft-click push-buttons with a green LED indicator for each button
  • Communicates with nLight network; remotely configurable/upgradeable
  • Screwless wall plate design; ships with wall plates and mounting flanges (WS XPODA)
  • Field-replaceable buttons with custom engraving available

Catalog Number NPODMA DX WH
Input Voltage 15-24VDC, 5mA, Class 2 (nLight network power)
Dimming On/off + raise/lower control (DX)
Dimensions 2.74”H x 1.68”W x 1.63”D (70mm x 43mm x 41mm), not including ground strap
Mounting Single-Gang Box or Low Voltage Ring
Communication RJ-45 nLight Network Ports (2), CAT-5e
Power Supply Powered via CAT-5e from an nLight enabled fixture, power pack (e.g. nPP16), power supply (nPS80) or Bridge (nBRG 8)
Wiring CAT-5e (non-booted CAT5e cables only)
Operating Temperature 32°F to 140°F (0°C to 60°C)
Relative Humidity Up to 90%, Non-Condensing
Certifications Energy Management Equipment, UL916 (E167435); RoHS; California SB-327 connected-device security
Warranty Five-year limited warranty
Color White
