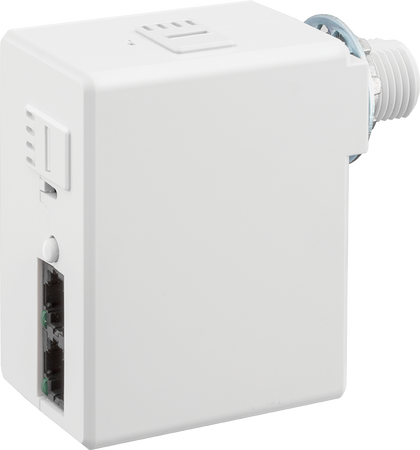

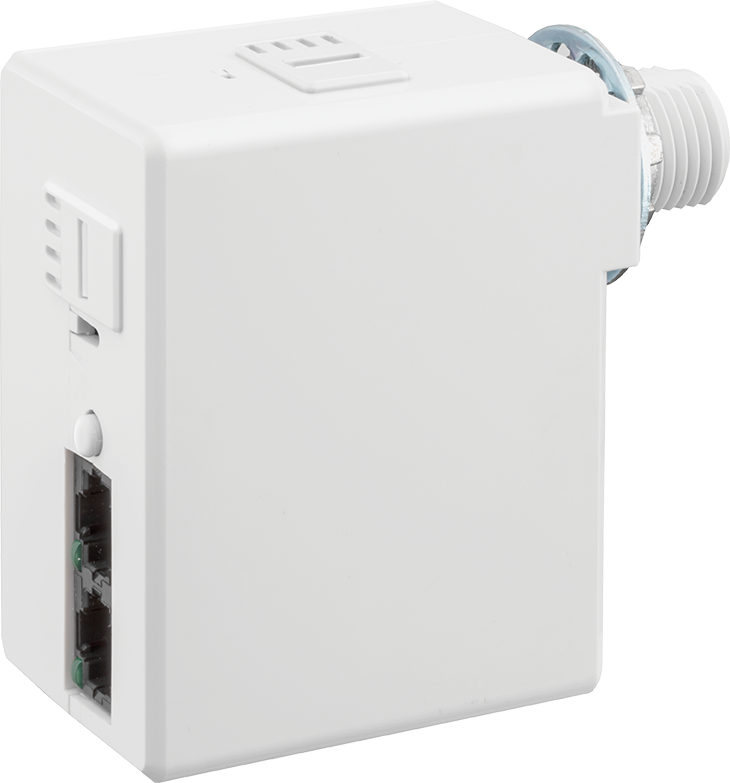

Acuity Brands nLight NPP16-EFP The nLight nPP16 Series power pack is the workhorse, NPP16 EFP

Acuity Brands nLight NPP16-EFP The nLight nPP16 Series power pack is the workhorse, NPP16 EFP

$131.25

The Acuity Brands NPP16 EFP (nPP16 EFP Power/Relay Pack): A non-dimming nLight power/relay pack that switches a line voltage load through an internal latching relay and supplies nLight bus power to other devices in its control zone.

  • Self-contained latching relay switches line voltage load
  • Supplies 40mA of nLight bus power per RJ-45 port
  • Remotely configurable and upgradeable over the nLight network
  • Fuse integrated to relay wire lead for protection from load faults
  • Meets NEMA410 ratings for LED/electronic ballast inrush
  • Optional out-of-box vacancy and partial-on modes

Catalog Number NPP16 EFP
Input Voltage 120/277VAC, 50/60 Hz
Load Rating 16A - Tungsten, Standard Ballast, Electronic Ballast, General Purpose; 1/2 HP motor at 120VAC; SCCR 5KA
Relay Latching
Power Supply 15VDC, 40mA per RJ-45 Port (80mA total) nLight bus power
Communication RJ-45 nLight Network Ports (2)
Dimensions 3.38"H x 2.53"W x 1.83"D (86mm x 64mm x 47mm), not including 1/2" chase nipple
Mounting 1/2" Knockout (7/8" hole)
Color White
Operating Temperature 14°F to 122°F (-10°C to 50°C); 14°F to 113°F (-10°C to 45°C) if enclosed within a junction box
Certifications Energy Management Equipment, UL916 (E167435); RoHS, Plenum UL2043
Warranty Five-year limited warranty
Dimming None (non-dimming model)
Wiring Non-Dimming Model: Line Voltage Leads
