Acuity Brands nLight nPP16 Dimming Power/Relay Pack, 0-10V, 120/277V, NPP16 D EFP

Acuity Brands nLight nPP16 Dimming Power/Relay Pack, 0-10V, 120/277V, NPP16 D EFP

$138.75

Estimated Lead Time: 0-2 weeks

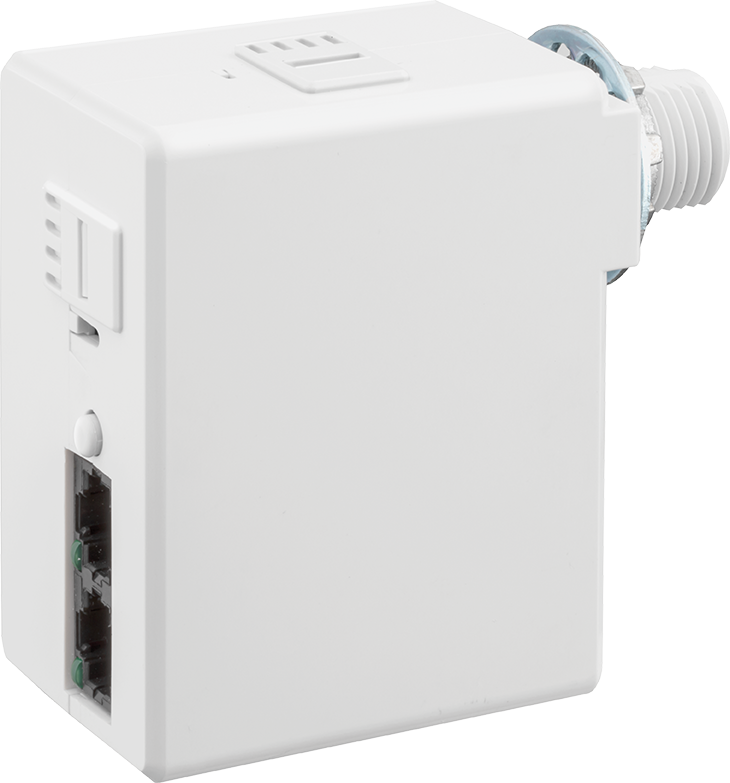

The Acuity Brands NPP16 D EFP (nPP16 EFP Power/Relay Pack): An nLight power/relay pack with a 0-10VDC dimming output that switches a line voltage load through an internal latching relay and supplies nLight bus power.

  • Self-contained latching relay switches line voltage load
  • Supplies 40mA of nLight bus power per RJ-45 port
  • Remotely configurable and upgradeable over the nLight network
  • Fuse integrated to relay wire lead for protection from load faults
  • Meets NEMA410 ratings for LED/electronic ballast inrush
  • Optional out-of-box vacancy and partial-on modes

Catalog Number NPP16 D EFP
Input Voltage 120/277VAC, 50/60 Hz
Load Rating 16A - Tungsten, Standard Ballast, Electronic Ballast, General Purpose; 1/2 HP motor at 120VAC; SCCR 5KA
Relay Latching
Power Supply 15VDC, 40mA per RJ-45 Port (80mA total) nLight bus power
Communication RJ-45 nLight Network Ports (2)
Dimensions 3.38"H x 2.53"W x 1.83"D (86mm x 64mm x 47mm), not including 1/2" chase nipple
Mounting 1/2" Knockout (7/8" hole)
Color White
Operating Temperature 14°F to 122°F (-10°C to 50°C); 14°F to 113°F (-10°C to 45°C) if enclosed within a junction box
Certifications Energy Management Equipment, UL916 (E167435); RoHS, Plenum UL2043
Warranty Five-year limited warranty
Dimming 0-10VDC dimming output (via chase nipple); 100mA 0-10VDC dimming sink current
Wiring Dimming Model: Line and Low Voltage Leads; 0-10V dimming can be wired Class 1 or 2
