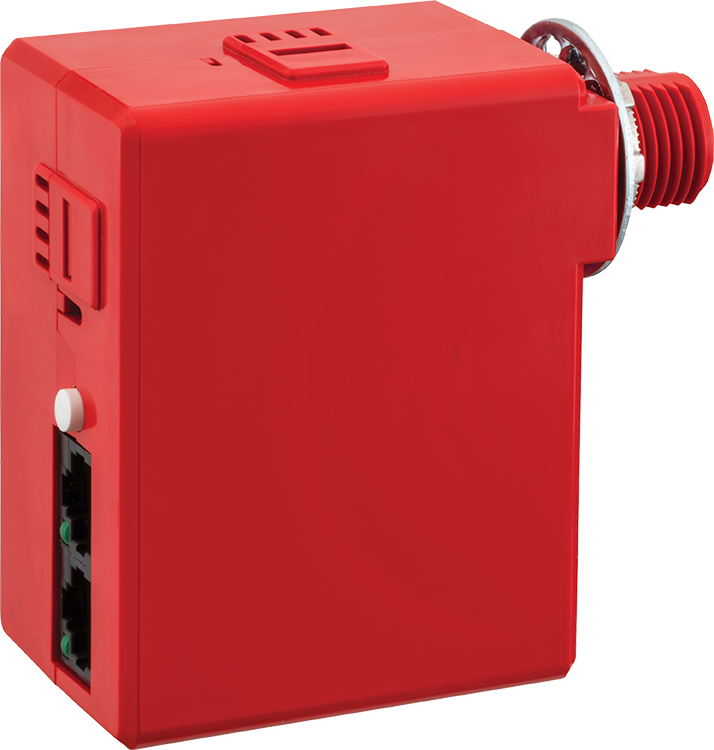

Acuity Brands nLight nPP16 Emergency Power/Relay Pack, UL 924, 0-10V Dimming, NPP16 D ER EFP

Acuity Brands nLight nPP16 Emergency Power/Relay Pack, UL 924, 0-10V Dimming, NPP16 D ER EFP

$272.50

The Acuity Brands NPP16 D ER EFP (nPP16 ER EFP Emergency Relay Pack): A dimming nLight UL924 emergency relay pack with 0-10V output that switches emergency-circuit luminaires and drives them to full output when normal power is lost.

  • Automatically overrides emergency lights on to full brightness upon normal power loss
  • Switches luminaires powered via an emergency circuit
  • Push-button test simulates loss of normal power
  • Can interface with a fire alarm panel to force egress lighting on
  • Fuse integrated to relay wire lead for protection from load faults
  • Meets NEMA410 ratings for LED/electronic ballast inrush

Catalog Number NPP16 D ER EFP
Input Voltage 120/277VAC, 50/60 Hz; 120-277VAC, 50/60 Hz Normal Power Sense
Output 120-347VAC, 50/60 Hz, 16A - Tungsten, Standard Ballast, Electronic Ballast, General Purpose
Load Rating 16A - Tungsten, Standard Ballast, Electronic Ballast, General Purpose; 1/2 HP motor at 120VAC; SCCR 5KA
Relay Latching
Emergency UL924 Emergency Operation; when normal power sense leads lose voltage the relay closes and 0-10V dimming is set to high end trim level
Power Supply Self-powering, does not supply nLight bus voltage
Communication RJ-45 nLight Network Ports (2)
Dimensions 3.38"H x 2.53"W x 1.83"D (86mm x 64mm x 47mm), not including 1/2" chase nipple
Mounting 1/2" Knockout (7/8" hole)
Color Red
Operating Temperature 14°F to 122°F (-10°C to 50°C); 14°F to 113°F (-10°C to 45°C) if enclosed within a junction box
Certifications Energy Management Equipment, UL916 (E167435); Emergency Power Equipment, UL924 (E342232); RoHS, Plenum UL2043
Warranty Five-year limited warranty
Dimming 0-10VDC dimming output (via chase nipple); 100mA 0-10VDC dimming sink current; set to high end trim when normal power is lost
Wiring Dimming Model: Line and Low Voltage Leads; 0-10V dimming can be wired Class 1 or 2
