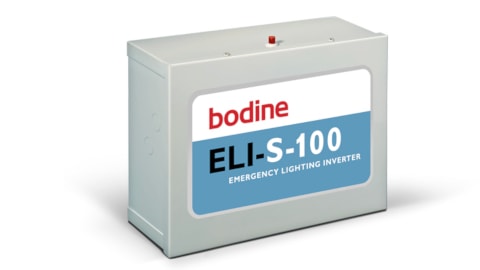

Bodine 100VA Emergency LED Inverter, 120-277VAC Input/Output, 0-10V Dimming, ELIS100
- ROCK SKU: BOD-ELIS100
- MFG Part #: ELIS100
$767.69
Product dimensions
-
Width:
12.56 IN
-
Height:
9.81 IN
-
Depth:
4.68 IN
-
Weight:
25 LBS
The Bodine ELIS100 Emergency Lighting Inverter is a high-power 100VA inverter designed to convert standard LED or fluorescent luminaires into code-compliant emergency lighting while allowing the fixtures to operate normally during everyday use.
- It provides 100VA of pure sine-wave emergency output for a minimum of 90 minutes and supports connected lighting loads up to 400W using automatic 0-10V dimming technology
- with universal 120-277V input and automatic output-voltage selection.
- The unit is UL 924 listed for factory or field installation and includes a maintenance-free sealed lead-acid battery
- integrated test switch/charging indicator
- and a durable steel enclosure suitable for indoor and damp-location commercial applications such as offices
- retail stores
- schools
- and industrial lighting systems.
| UL Listed for the US and Canada | UL924 Emergency Lighting Compliant |
| Installation | Factory or Field Installation (Indoor and Damp) |
| Illumination Time | 90 Minutes |
| Maximum Connected Load Power (including AC ballast/driver) | 400 W (consult factory) |
| Warranty | 5 Years Full Coverage (not including battery) 3 year battery warranty plus 4 additional years pro-rata |
| AC Input Voltage | 120 VAC 60 Hz or 277 VAC 60 Hz |
| Input Charging Current | 370 mA Max Charging |
| Output Voltage | 120 or 277 VAC 60 Hz automatically selected |
| Output Power | Maximum output 100 VA Maximum load PF +/-0.75 Battery |
| Maintenance-Free Sealed Lead Acid Battery | Recharge Time |
| 24 Hours | Charging Indicator Light/Test Switch |
| Integrated LED/test switch | Temperature Rating (Ambient) |
| 32°F to 104°F (0°C to 40°C) |
