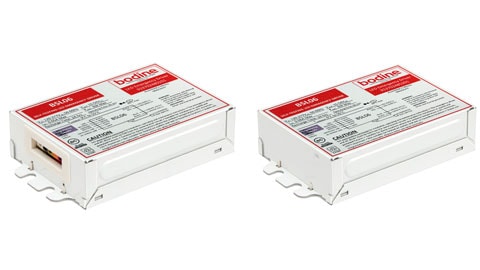

Bodine 6W Class 2 LED Emergency Driver, Bottom Stud Mount, BSL06M5UAK55BSI1
- ROCK SKU: BOD-BSL06M5UAK55BSI1
- MFG Part #: BSL06M5UAK55BSI1
$116.92
Product dimensions
-
Width:
4.21 IN
-
Height:
3.00 IN
-
Depth:
1.18 IN
-
Weight:
0.75 LBS
The Bodine BSL06M5 LED Emergency Driver is a compact 6-watt Class 2 emergency lighting solution designed to convert standard LED luminaires into code-compliant emergency lighting while allowing normal fixture operation during everyday use.
- It provides 6W of regulated emergency output for a minimum of 90 minutes and features universal 120-277V input
- 15-54V DC output
- a maintenance-free lithium-ion battery
- and a plenum-rated metal test switch/charging indicator.
- The unit is UL 924 listed for field or factory installation and is suitable for indoor and damp-location commercial lighting applications such as offices
- retail spaces
- schools
- and LED downlight fixtures where space-limited installation is required.
| UL LISTED FOR US & CANADA | Listed to UL924 and tested to CSA 22.2 No. 141; Field or Factory Installation (Indoor and Damp); Output Class 2 Compliant |
| Illumination Time | 90 Minutes |
| Full Warranty | 5 Years (NOT pro-rata) |
| Universal Input Voltage | 120-277 VAC |
| 50/60 Hz | Output Voltage |
| 15 - 54 VDC | Output Current |
| 470 mA (Maximum) | Output Power |
| 6.0 W initial (regulated) | Test Switch / Charging Indicator |
| Plenum rated metal test switch assembly Battery | High-Temperature |
| Maintenance-Free Lithium-Ion Battery; 7- to 10-Year Life Expectancy | Recharge Time |
| 24 Hours | Temperature Rating (Ambient) |
| 0°C to +55°C (32°F to 122°F); Case: Tc (max): 65°C |
Product dimensions
-
Width:
4.21 IN
-
Height:
3.00 IN
-
Depth:
1.18 IN
-
Weight:
0.75 LBS
