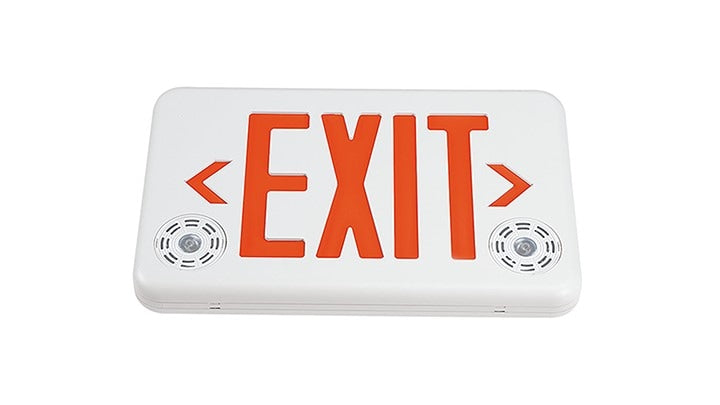

Bodine FirstLink LED Exit Sign Emergency Light Combo, Red Letters, White Housing, BCA2RWFL1
- ROCK SKU: BOD-BCA2RWFL1
- MFG Part #: BCA2RWFL1
$152.31
Product dimensions
-
Width:
8.7 IN
-
Height:
13.75 IN
-
Depth:
2.13 IN
-
Weight:
2.9 LBS
The Bodine BCA Combo Exit Sign with Emergency Lighting is a dual-function emergency fixture designed to provide both illuminated exit signage and high-performance emergency lighting in a single unit. It delivers 520 lumens of emergency output and includes two adjustable LED lamp heads to ensure proper illumination of the path of egress during a power failure.
- The unit features a maintenance-free lithium-ion battery that provides a minimum of 90 minutes of emergency operation and automatically recharges within 24 hours. It is designed for universal installation (wall, ceiling, or end mount) and is suitable for indoor and damp-location applications.
- This model is part of the FirstLink system, which enables automated testing, status reporting, and maintenance tracking through wireless connectivity. The fixture meets UL 924 emergency lighting requirements and complies with NEC, NFPA 101 Life Safety Code, and DOE efficiency standards, making it suitable for commercial buildings, offices, schools, and industrial facilities.
| UL LISTED FOR US & CANADA | Listed to UL 924 for Field Installation in the US and Canada (Indoor and Damp) DOE Compliant |
| Illumination Time | 90 Minutes |
| Initial Light Output | 520 Lumens (total from both lamp heads) Fixture Spacings – See Spec |
| Full Warranty | 5 Years (NOT pro-rata) |
| Universal Input Voltage | 120-277 VAC |
| 50/60 Hz | Construction |
| White thermoplastic housing UL94 5VA flame rated UV stable Contractor friendly snap together design Electronics and battery contained within housing | Construction |
| White thermoplastic housing UL94 5VA flame rated UV stable Contractor friendly snap together design Electronics and battery contained within housing | Installation |
| Universal wall/end/ceiling mounting (universal mounting adapter provided for wall and end mounting) Back plate keyhole slots are easily removable knockouts for securing to a 3 or 4 j-box Pop-out directional indicating chevrons easily removed as required | Battery |
| High-Temperature | Maintenance-Free Lithium-Ion Battery 7- to 10-Year Life Expectancy |
| Recharge Time | 24 Hours |
