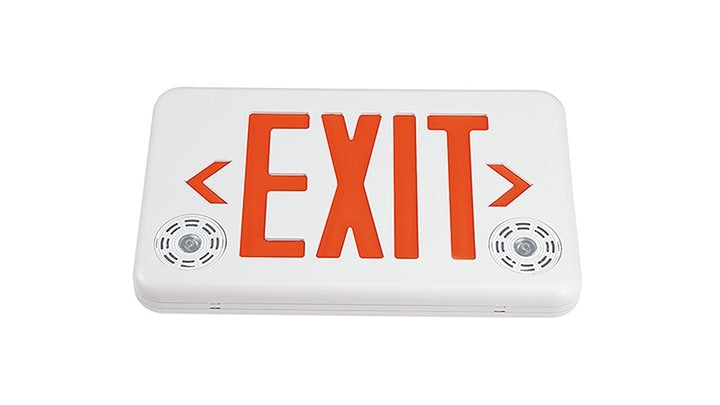

Bodine FirstLink LED Single or Double Exit Sign with Emergency Lights, Red Letters, White Housing, BXARWFL1
- ROCK SKU: BOD-BXARWFL1
- MFG Part #: BXARWFL1
$116.92
Product dimensions
-
Width:
8.7 IN
-
Height:
13.75 IN
-
Depth:
2.13 IN
-
Weight:
2.9 LBS
Connected Battery Backup Exit Sign (FirstLink enabled)
- The Bodine BXA FirstLink Connected Exit Sign is a battery-backup LED exit sign designed for code-compliant emergency egress lighting with built-in wireless connectivity.
- It is part of the FirstLink connected emergency lighting system and supports automatic testing
- wireless status reporting
- and maintenance tracking through the FirstLink platform.
- The fixture includes a maintenance-free lithium-ion battery that provides a minimum of 90 minutes of emergency illumination and automatically recharges within 24 hours.
- It supports universal mounting (wall
- ceiling
- or end mount) and can be configured as either single- or double-faced for flexible installation.
- The unit features a white thermoplastic housing with a contractor-friendly snap-together design and integrated LED test switch.
- The BXA exit sign is UL 924 listed for field installation in the US and Canada and is suitable for indoor and damp-location applications.
- It includes a 5-year full warranty and is designed for commercial buildings such as offices
| UL LISTED FOR US & CANADA | Listed to UL 924 for Field Installation in the US and Canada (Indoor and Damp); DOE Compliant |
| Illumination Time | 90 Minutes |
| Full Warranty | 5 Years (NOT pro-rata) |
| Universal Input Voltage | 120-277 VAC |
| 50/60 Hz | Construction |
| White thermoplastic housing; UL94 5VA Flame Rated; UV stable; Contractor friendly snap together design; Electronics and battery contained within housing | Installation |
| Universal wall/end/ceiling mounting (universal mounting adapter provided for wall and end mounting); Back plate keyhole slots are easily removable knockouts for securing to a 3 or 4 j-box; Pop-out directional indicating chevrons easily removed as required; Extra stencil face plate provided for double faced applications | Battery |
| High-Temperature | Maintenance-Free Lithium-Ion Battery; 7- to 10-Year Life Expectancy |
| Recharge Time | 24 Hours |
| Temperature Rating (Ambient) | 50° F to 104° F (10° C to 40° C) |
