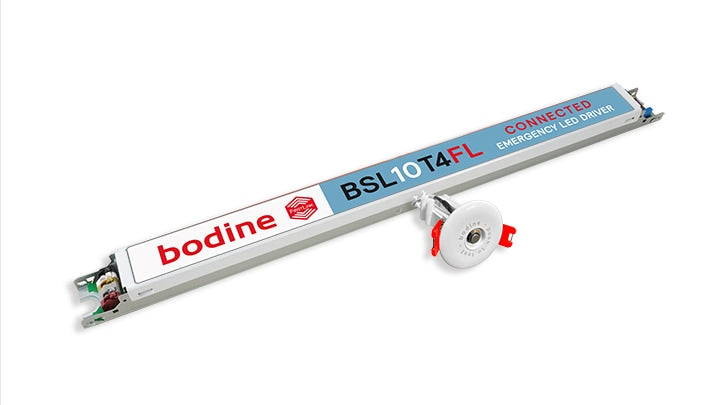

Bodine FirstLink 10W Class 2 Linear Strip Emergency LED Driver, BSL10T4UAK55PKFLI2
- ROCK SKU: BOD-BSL10T4UAK55PKFLI2
- MFG Part #: BSL10T4UAK55PKFLI2
$152.31
Product dimensions
-
Width:
16.6 IN 1.18 IN
-
Height:
Mounting Center: 16.3 IN 1.2 LBS
-
Depth:
-
Weight:
The Bodine BSL10T4FL FirstLink Connected Emergency LED Driver is a 10-watt Class 2 emergency driver designed to convert standard LED luminaires into code-compliant emergency lighting while supporting FirstLink wireless connectivity and automated testing.
- It provides approximately 1500 lumens of emergency output with a universal 120–277V input
- 15–54 VDC output
- and a maintenance-free lithium-ion battery that delivers a minimum of 90 minutes of emergency illumination.
- The driver is UL 924 listed for field or factory installation in the US and Canada and features a compact low-profile linear design
- metal illuminated test switch/charge indicator
- and 5-year warranty
- making it suitable for commercial indoor and damp-location lighting applications.
| UL LISTED FOR US & CANADA, Listed to UL924 and tested to CSA 22.2 No. 141; Field or Factory Installation (Indoor and Damp); Output Class 2 Compliant; CEC Title 20 Compliant,Illumination Time, 90 Minutes, Initial Light Output, Approximately 1500 Lumens (assuming a LED load efficacy of 150 lumens/watt), Full Warranty, 5 Years (NOT pro-rata),Universal Input Voltage, 120-277 VAC, 50/60 Hz ,Output Voltage, 15 - 54 VDC , Output Power, 10.0 W initial (regulated) , Test Switch / Charging Indicator, Metal IP65 Bi-Color Illuminated Test Switch (Charge Indicator LED / Test Switch) with plenum rated cable | Battery, High-Temperature, Maintenance-Free Lithium-Ion Battery; 7- to 10-Year Life Expectancy, Recharge Time, 24 Hours, Temperature Rating (Ambient), 0°C to +55°C (32°F to 131°F); Case: Tc (max): 63°C, |
Product dimensions
-
Width:
16.6 IN 1.18 IN
-
Height:
Mounting Center: 16.3 IN 1.2 LBS
-
Depth:
-
Weight:
