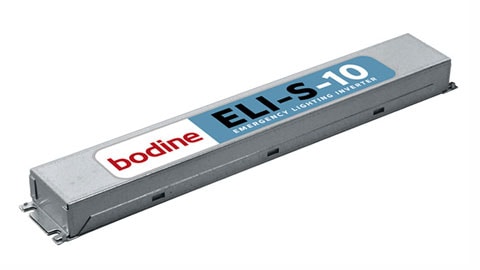

Bodine 10VA Emergency Inverter for LED Basket Troffers, 0-10V Dimming, ELIS10
- ROCK SKU: BOD-ELIS10
- MFG Part #: ELIS10
$150.77
Product dimensions
-
Width:
15.34 IN
-
Height:
2.25 IN
-
Depth:
1.16 IN
-
Weight:
3.45 LBS
The Bodine ELIS10 emergency lighting inverter is a compact 10VA nano inverter designed to provide code-compliant emergency lighting power to connected luminaires during a power failure while automatically selecting the correct output voltage.
- It provides a 90-minute emergency runtime and supports a maximum connected load of up to 50 watts
- using a maintenance-free lithium-ion battery with a 24-hour recharge time and integrated LED test switch for simple maintenance and testing.
- The inverter is UL 924 listed for field or factory installation in the US and Canada and is designed for commercial lighting applications such as offices
- retail spaces
- schools
- and industrial buildings
- with a compact low-profile design suitable for installation inside or near lighting fixtures
| UL LISTED FOR US & CANADA | Listed to UL924 and tested to CSA 22.2 No. 141; For Field or Factory Installation (Indoor and Damp) |
| Illumination Time | 90 Minutes |
| Maximum Load Power (including AC ballast/driver) | 50 W (consult factory for driver compatibility) |
| Warranty | 5 Years (NOT pro-rata) |
| AC Input Voltage and Current | 120 through 277VAC |
| 50/60 Hz | 80 mA |
| Output Voltage | Automatically selected 120 VAC ±10% or 277 VAC ±10% |
| Output Frequency | 60 Hz ±5% |
| Test Switch | 2W-ITS |
| Battery | Maintenance-Free Li-Ion Battery |
| Recharge Time | 24 Hours |
| Charging Indicator Light/Test Switch | Integrated LED/Test Switch |
| Temperature Rating (Ambient) | 32°F to 122°F (0°C to 50°C) |
