Bodine 1000 Lumens Emergency LED Driver and Module Kit, BLK1000T3UK55TS1
- ROCK SKU: BOD-BLK1000T3UK55TS1
- MFG Part #: BLK1000T3UK55TS1
$106.15
Product dimensions
-
Width:
14.1 IN
-
Height:
1.18 IN
-
Depth:
1.0 IN
-
Weight:
1.05 LBS

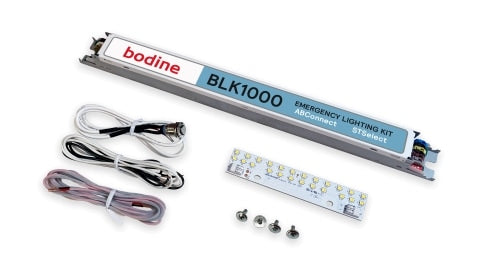

The Bodine BLK1000 Emergency Lighting Kit is a complete emergency retrofit solution designed to convert standard luminaires into code-compliant emergency lighting while maintaining normal fixture operation.
- It includes a high-temperature lithium-ion battery
- an emergency LED driver
- and a 1000-lumen LED module that provides a minimum of 90 minutes of emergency illumination with universal 120-277V input.
- The unit is UL classified for field installation and suitable for indoor and damp-location commercial applications such as offices
- retail spaces
- schools
- and industrial buildings.
| Regulatory | UL Classified for field retrofit of normal luminaires in the US & Canada (Indoor and Damp) |
| Output – Class 2 compliant; CEC Title 20 | Installation does not affect the UL Listing of the luminaire |
| Illumination Time | 90 Minutes |
| Initial Light Output | 1000 Lumens |
| Full Warranty | 5 Years (NOT pro-rata) |
| Universal Input Voltage | 120-277 VAC |
| 50/60 Hz | Test Switch / Charging Indicator |
| Metal IP65 Bi-Color Illuminated Test Switch (Charge Indicator LED / Test Switch) with plenum rated cable | Battery |
| High-Temperature | Maintenance-Free Lithium-Ion Battery; 7- to 10-Year Life Expectancy |
| Recharge Time | 24 Hours |
| Temperature Rating | Case: Tc (max): 65°C |
