/ NDR Electric Regressed Fire Rated Recessed Downlight, RZR-CCT-FR600

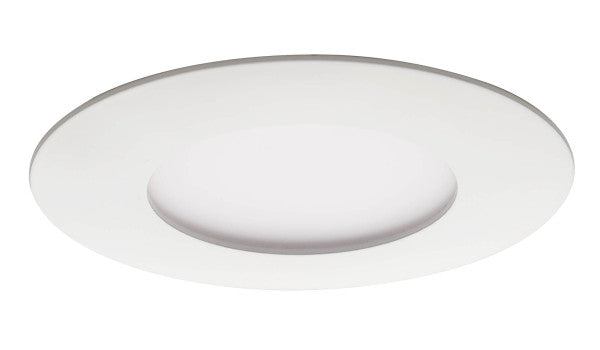

NDR Electric Regressed Fire Rated Recessed Downlight, RZR-CCT-FR600
- ROCK SKU: NDR-RZR-CCT-FR600
- UPC: 775110022722
- MFG Part #: RZR-CCT-FR600
$75.00
$49.99
Product dimensions
-
Width:
-
Height:
-
Depth:
-
Weight:
The Razor Fire Rated series comes with a patent pending design 2-Hour Fire Rating and a trademark Fire Safe back plate which provides a reinforced and heat resistant steel casing. This unique design and technology offers an affordable solution in applications that require up to a 2-hour fire rating. In conjunction with fire rating building codes for ceiling materials (example: type-X gypsum), no additional accessories are needed. Simply cut the correct hole diameter, wire the junction box, and then install the light unit. Installation is complete!
| Light Unit | Aluminum Die Cast trim with powder paint coat preventing discoloring and rusting. It offers a 2HR Fire Rated protection with the Fire Safe™ back plate technology which provides a reinforced and heat resistant steel casing. |
| Installation | Ideal for shallow ceiling installations with no housing required. Installed with Heavy-Duty Commercial Grade Steel spring clip, to withstand excessive heat. The clips allow for easy installation. |
| Wiring | Plenum rated cable used to connect light unit and junction box. |
| Junction Box | The box includes a Commercial Grade Driver designed for 24-hour usage. It is constructed of aluminum extrusion, with knockouts located at each end. Wiring compartment allows for (8) 12 gauge (AWG) or (10) 14 gauge (AWG) insulated conductors. Connection to one (1) downstream unit is permitted within the junction box compartment. The compartment satisfies junction box volume requirements of CSA C22.2 No. 250.0/UL 1598. |
| Optics | EDGE-lit LED technology uses light guided plate to distribute light. A polycarbonate lens is used to provide even illumination throughout the installation. The regressed design offers an anti-glare feature. |
| Electrical & Phase Control | Easily connected to a 120V power supply via provided UL recognized driver. Dimming down to 10% with most standard LED dimmers (see list of approved dimmers). Ambient operating temperature: -40°C (-40°F) to +40°C (+104°F). IC, WET Location and AIR-TIGHT rated, ENERGY STAR and T24-JA8 approved. Phase Control: Forward Phase. |
