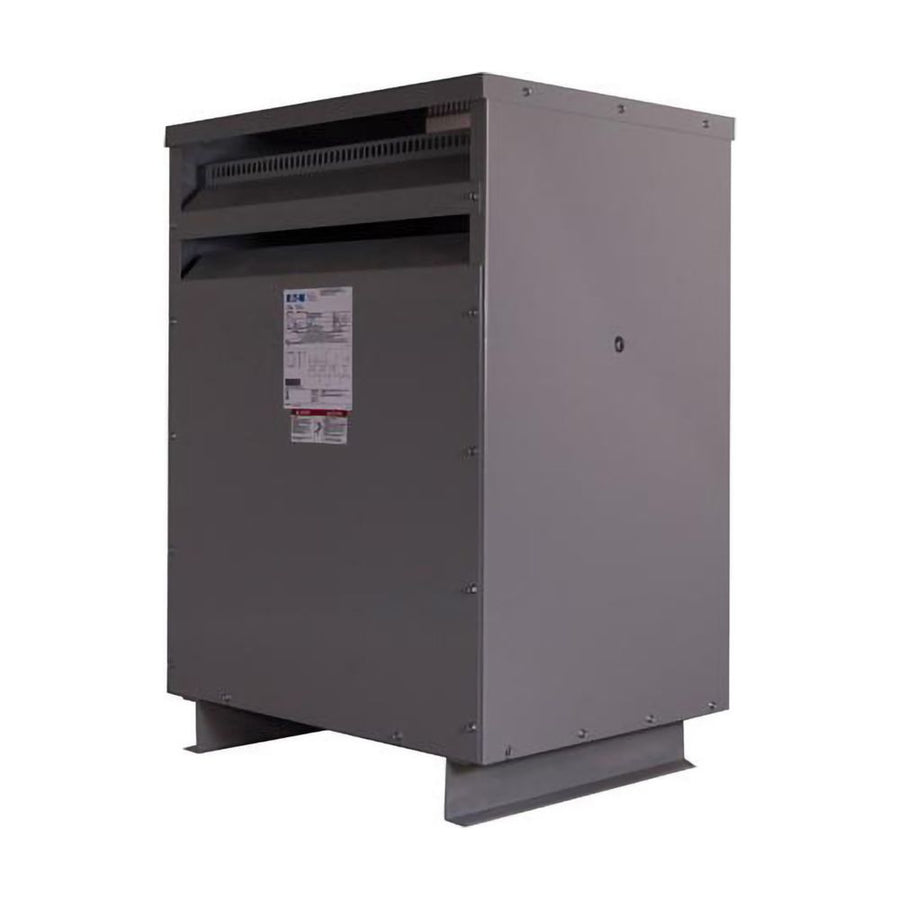

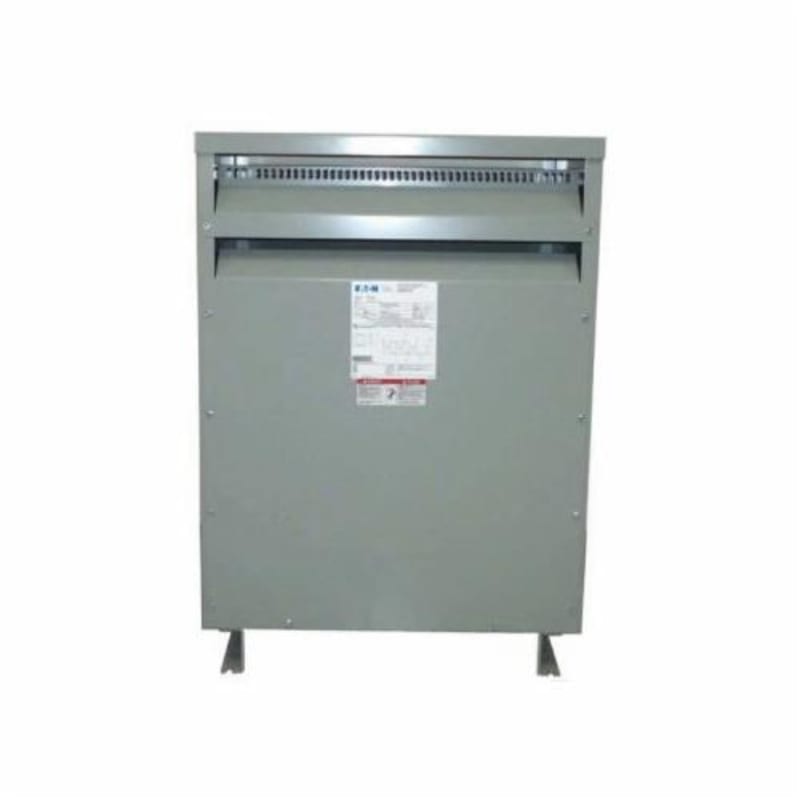

Eaton Three-Phase Ventilated Dry-Type Transformer 480 Delta Primary 208Y / 120V Secondary, 45KVA, V48M28T4516

$2,470.00

Estimated Lead Time: 0-1 weeks

Product dimensions

  • Width:

    24.88 IN

  • Height:

    36.88 IN

  • Depth:

    21.13 IN

  • Weight:

    436 LBS

Eaton General purpose ventilated transformer; Fungus proof; AL windings; DOE 2016; NEMA 2; FR940; 220°C; 45 kVA; Fl/wall mt uprt; 3-phase; PV: 480V delta; SV: 208Y/120; NEMA ST-20; 2 at +2.5%; 4 at -2.5%; 150°C; 45 kVA; WS58; 280B


Compliances DOE2016 Efficient
Certifications UL Listed
Catalog Notes 10 CFR Part 431 (2016) Efficient
Coil Material Aluminum
Enclosure NEMA 2
Frame FR940
Insulation 220 °C
Mounting Floor or wall, upright only
Tap Size 2 at +2.5%, 4 at -2.5%
Type Energy-efficient ventilated dry-type transformer
Wiring Connection 280B
Efficiency 10 CFR Part 431-2016 (DOE 2016)
Frequency Rating 60 Hz
KVA Rating 45 KVA
Primary Voltage 480 V delta
Secondary Voltage 208Y/120 V
Sound Level NEMA ST-20
Temperature Rise 150 °C rise
Volt Ampere Rating 45 kVA
Voltage Rating 480 Vac-208Y/120 Vac
Weathershield WS58

Product dimensions

  • Width:

    24.88 IN

  • Height:

    36.88 IN

  • Depth:

    21.13 IN

  • Weight:

    436 LBS
