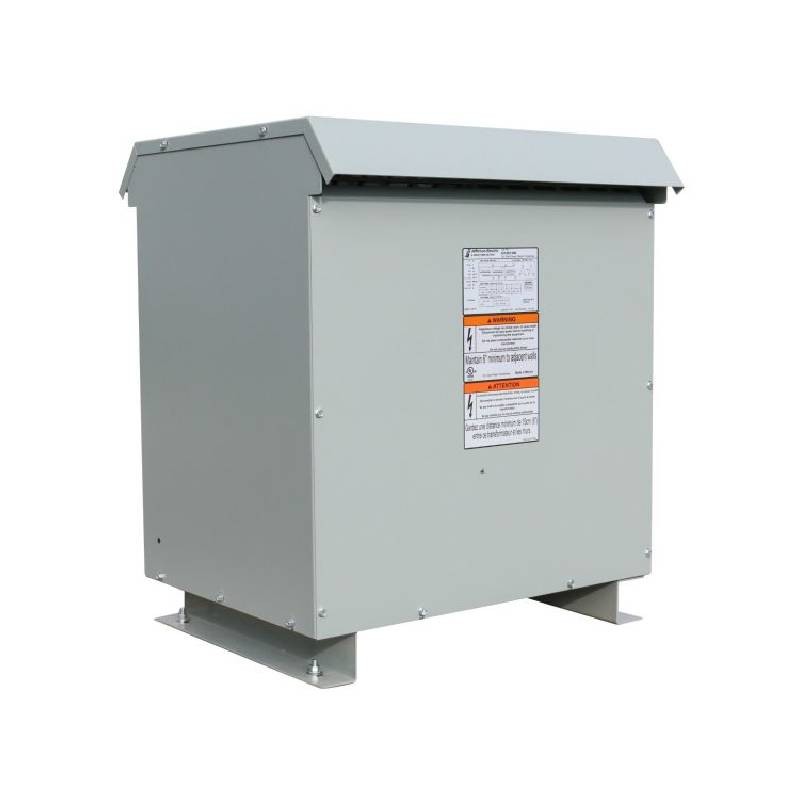

Jefferson Electric Three-Phase Ventilated DOE Transformer 480V Delta Primary 208Y / 120V Secondary, 30KVA, 423-9194-000

$1,890.00

Estimated Lead Time: 0-1 weeks

Product dimensions

  • Width:

    22 IN

  • Height:

    25IN

  • Depth:

    22 IN

  • Weight:

    330 LBS

Jefferson Electric offers a full line of three phase Ventilated Dry Type Transformers within the 600 volt class. Designed to meet the highest industry standards for quality; durability; and reliability in the Commercial; Industrial; Lighting and OEM Markets.


  • Meets Federally Mandated DOE – 2016 Standard for Energy Efficiency.
  • Manufactured in accordance with NEMA; ANSI; UL and CSA Standards.
  • Minimized Space Saving Design – Designed for easier handling and installation.
  • Termination Lugs Provided with Transformer Through 75 kVA.
  • Vibration Isolation Pads Provide Quiet Operation.
  • NEMA 3R Enclosure.
  • Staggered Front Loop Taps for Easy Connection.
  • Additional Voltage Combinations Available.
  • Windings – Copper or Aluminum.
  • Temperature Rise – 150; 115; 80° C.
  • Indoor and Outdoor use.
KVA 30.00
Enclosure NEMA 3R Ventilated
Phase Three-Phase
Line Voltage 480V-Delta
Load Voltage 208Y/120V
E/S Shielded No
Windings Aluminum
Temp. rise 150°
Frequency 60 Hz
Taps 2 - 2.5% FCAN; 4 - 2.5% FCBN
Impedance 4.1
Total loss (17° C) 1086.00
Regulation (full load) PF 1.0=3.84 PF 0.8=4
Efficiency Type DOE-2016
Minimum Efficiency (35%) 98.23
Lugs Primary AL/CU, Secondary AL/CU
Sound 45 db Max
Approvals UL, cUL, DOE

Product dimensions

  • Width:

    22 IN

  • Height:

    25IN

  • Depth:

    22 IN

  • Weight:

    330 LBS
