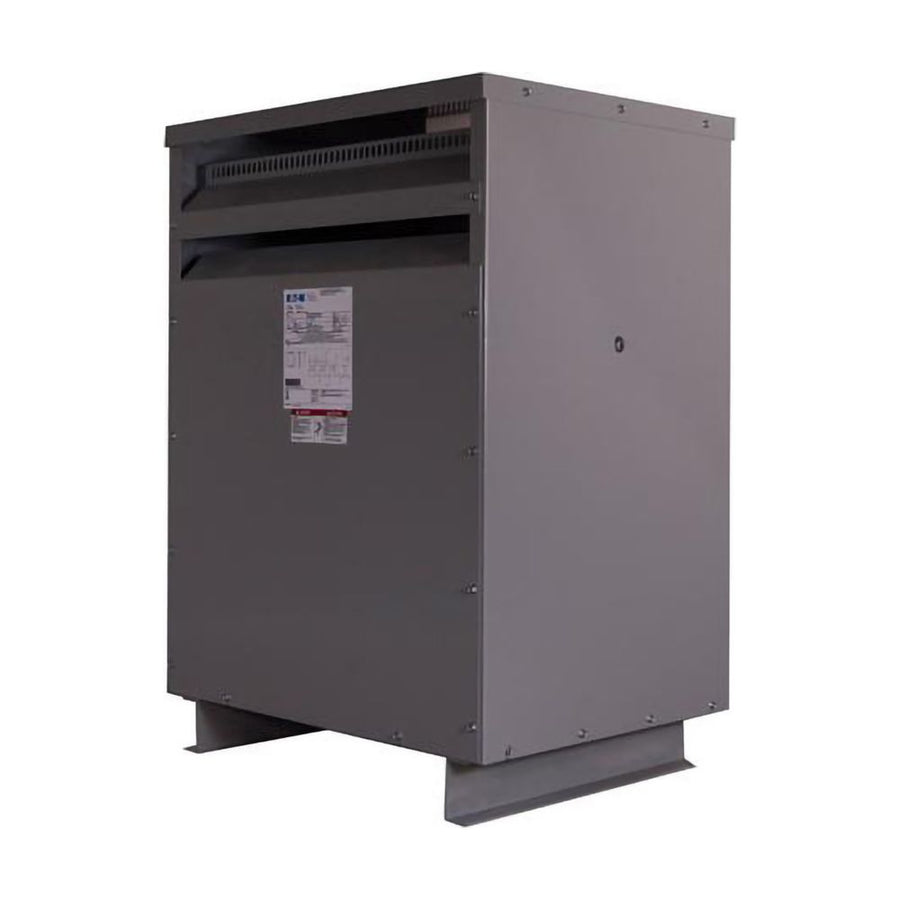

Eaton Three-Phase Ventilated Dry-Type Transformer 480 Delta Primary 208Y / 120V Secondary, 15KVA, V48M28T1516
- ROCK SKU: EAT-V48M28T1516
- UPC: 786680147517
- MFG Part #:
$1,790.00
Estimated Lead Time: 0-1 weeks
Product dimensions
-
Width:
21.88 IN
-
Height:
28 IN
-
Depth:
17.75 IN
-
Weight:
228 LBS
DOE 2016 Efficient Transformer; Three-phase; PV: 480V; Taps: 2 at +2.5% FCAN; 4 at -2.5% FCBN; SV: 208Y/120V; 150°C; 15 kVA; Al windings.
| Compliances | DOE2016 Efficient |
| Certifications | UL Listed |
| Catalog Notes | 10 CFR Part 431 (2016) Efficient |
| Coil Material | Aluminum |
| Enclosure | NEMA 2 |
| Frame | 939 |
| Insulation | 220 °C |
| Tap Size | 2 at +2.5% FCAN; 4 at -2.5% FCBN |
| Wiring Connection | 280B |
| Efficiency | 10 CFR Part 431-2016 (DOE 2016) |
| Frequency Rating | 60 Hz |
| KVA Rating | 15 kVA |
| Primary Voltage | 480 V |
| Secondary Voltage | 208Y/120 V |
| Sound Level | 45 dB |
| Temperature Rise | 150 °C rise |
| Volt Ampere Rating | 15 kVA |
| Weathershield | WS57 |
