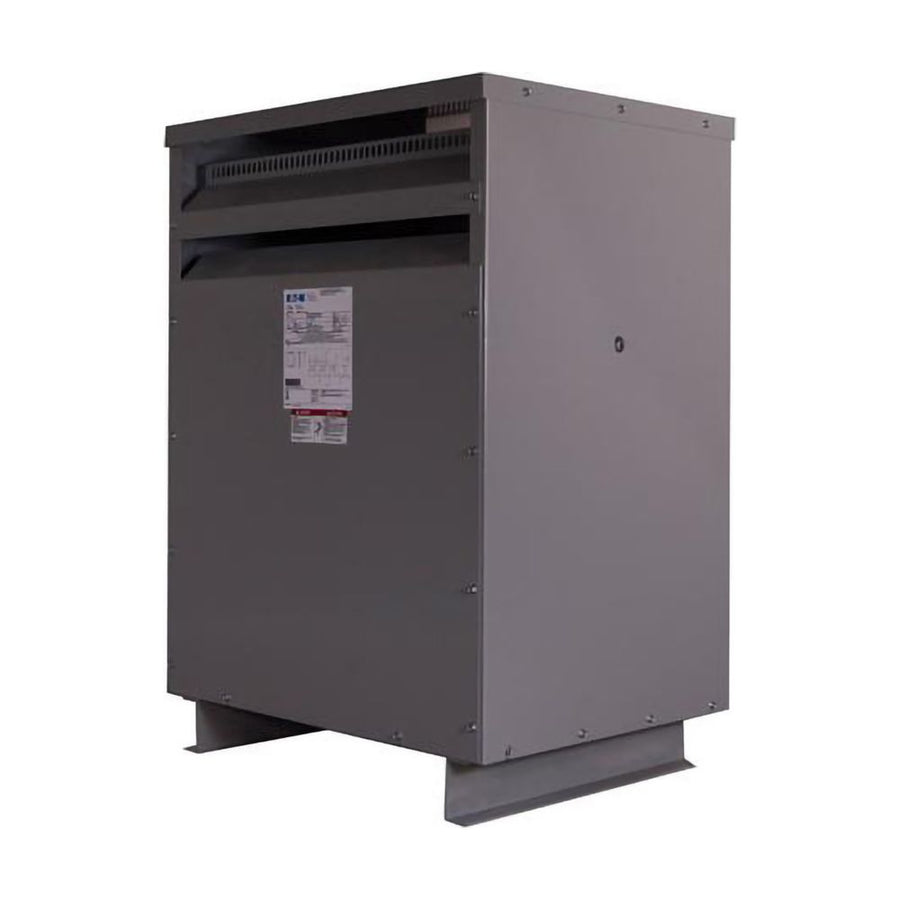

Eaton Three-Phase Ventilated Dry-Type Transformer 480 Delta Primary 208Y / 120V Secondary, 300KVA, V48M28T3316
- ROCK SKU: EAT-V48M28T3316
- UPC: 786680147296
- MFG Part #: V48M28T3316
$38,765.00
Estimated Lead Time: 0-1 weeks
Product dimensions
-
Width:
42.18 IN
-
Height:
66.18 IN
-
Depth:
33.5 IN
-
Weight:
2157 LBS
Eaton General purpose ventilated transformer; Fungus proof; AL windings; DOE 2016; NEMA 2; FR945; 220°C; 300 kVA; Floor mnt; 3-phase; PV: 480V delta; SV: 208Y/120; NEMA ST-20; 2 at +2.5%; 4 at -2.5%; 150°C; 300 kVA; WS62; 280B
| Compliances | DOE2016 Efficient |
| Certifications | UL Listed |
| Catalog Notes | 10 CFR Part 431 (2016) Efficient |
| Coil Material | Aluminum |
| Enclosure | NEMA 2 |
| Frame | FR945 |
| Insulation | 220 °C |
| Mounting | Floor |
| Tap Size | 2 at +2.5%, 4 at -2.5% |
| Type | Energy-efficient ventilated dry-type transformer |
| Wiring Connection | 280B |
| Efficiency | 10 CFR Part 431-2016 (DOE 2016) |
| Frequency Rating | 60 Hz |
| KVA Rating | 300 KVA |
| Primary Voltage | 480 V delta |
| Secondary Voltage | 208Y/120 V |
| Sound Level | NEMA ST-20 |
| Temperature Rise | 150 °C rise |
| Volt Ampere Rating | 300 KVA |
| Voltage Rating | 480 Vac-208Y/120 Vac |
| Weathershield | WS62 |
Product dimensions
-
Width:
42.18 IN
-
Height:
66.18 IN
-
Depth:
33.5 IN
-
Weight:
2157 LBS
