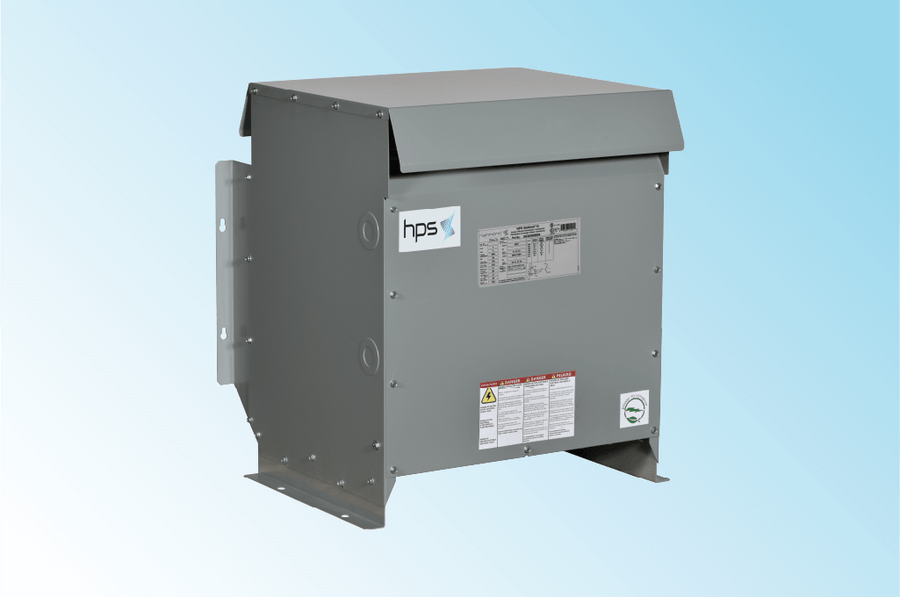

Hammond Power Solutions Three-Phase Ventilated Dry-Type Transformer 480 Delta Primary 208Y / 120V Secondary, 150KVA, SG3A0150KB
- ROCK SKU: HPS-SG3A0150KB
- UPC: 80342312367
- MFG Part #: SG3A0150KB
$5,945.00
Estimated Lead Time: 0-1 weeks
Product dimensions
-
Width:
31.5 IN
-
Height:
44.5 IN
-
Depth:
29.5 IN
-
Weight:
870 LBS
HPS Sentinel™ G general purpose distribution transformers are rated for 600 volts and below. They are generally used for supplying appliance; lighting; heating; motorized machine and power loads from electrical distribution systems.
- Meets North American Efficiency Standards: U.S. - DOE 10 CFR Part 431 (DOE 2016); Canada - SOR/2018-201; (NRCan 2019) & ON Reg. 404/12; Mexico - NMX-J-351-1-ANCE-2021
- 60 Hz frequency (some 50 Hz)
- Ratings from 15 to 333 kVA single phase and 15 to 1000 kVA three phase
- An extensive standard offer complimented by a wide variety of custom products available
- Copper and aluminum available
- Standard 150 deg C temperature rise and 220 deg C insulation class
- 10kV BIL on all HPS Sentinel G product
- UL Listed; CSA Certified
- Custom sizes; ratings and styles available upon request
- Type 3R enclosures
- Integrated wall mounting brackets (up to 1000lbs.)
| Duty | General Duty |
| Non-Linear Load (K-Factor Rating) | General Purpose |
| Phase | 3 |
| Rating | 150 kVA |
| Frequency | 60Hz |
| Primary Voltage | 480D |
| Primary Connection | Delta |
| Primary BIL | 10kV |
| Primary FCAN (NPL) | 2x2.5% |
| Primary FCBN (NPL) | 4x2.5% |
| Secondary Voltage | 208Y/120 |
| Secondary Connection | Wye-N |
| Secondary BIL | 10kV |
| Material | Aluminum |
| Vector Configuration | Dyn1 (-30°) |
| Temperature Rise | 150°C |
| Insulation Class | 220°C |
| Efficiency Regulation | DOE 2016 (US), NRCAN 2019 (Canada), NMX 2021 (Mexico) |
| Seismic Compliance | IBC 2018 (Sds=2.0, z/h=1, lp=1.5) |
| Sound Level | 50 dBA (NEMA ST-20) |
| Impedance (Std) | 2.5% - 6.5% |
| Approval | CSA, UL |
| Primary Termination (NPL) | Mechanical Lugs |
| Secondary Termination (NPL) | Mounting Pads |
| Enclosure Type | Type 3R / IP24 |
| Enclosure Finish | ANSI 61 Grey, UL50 |
Product dimensions
-
Width:
31.5 IN
-
Height:
44.5 IN
-
Depth:
29.5 IN
-
Weight:
870 LBS
