/ Jefferson Electric Three-Phase Ventilated DOE Transformer 480V Delta...

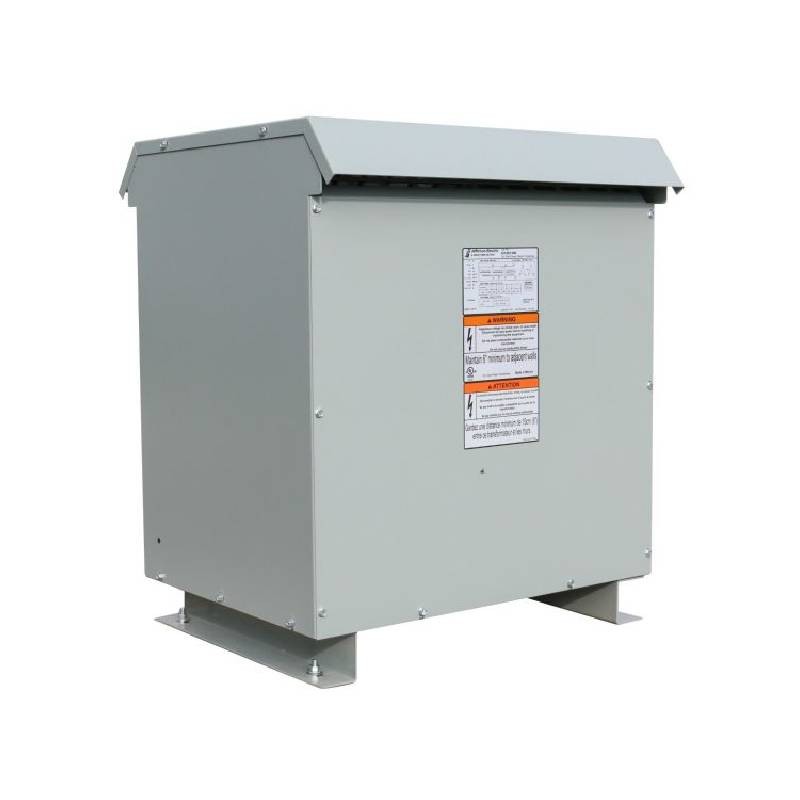

Jefferson Electric Three-Phase Ventilated DOE Transformer 480V Delta Primary 208Y / 120V Secondary, 75 KVA, 423-9234-000
- ROCK SKU: JEF-423-9234-000
- UPC: 78379540688
- MFG Part #: 423-9234-000
$2,840.00
Estimated Lead Time: 0-1 weeks
Product dimensions
-
Width:
27 IN
-
Height:
32 IN
-
Depth:
26 IN
-
Weight:
585 LBS
Jefferson Electric offers a full line of three phase Ventilated Dry Type Transformers within the 600 volt class. Designed to meet the highest industry standards for quality; durability; and reliability in the Commercial; Industrial; Lighting and OEM Markets.
- Meets Federally Mandated DOE – 2016 Standard for Energy Efficiency.
- Manufactured in accordance with NEMA; ANSI; UL and CSA Standards.
- Minimized Space Saving Design – Designed for easier handling and installation.
- Termination Lugs Provided with Transformer Through 75 kVA.
- Vibration Isolation Pads Provide Quiet Operation.
- NEMA 3R Enclosure.
- Staggered Front Loop Taps for Easy Connection.
- Additional Voltage Combinations Available.
- Windings – Copper or Aluminum.
- Temperature Rise – 150; 115; 80° C.
- Indoor and Outdoor use.
| KVA | 75.00 |
| Enclosure | NEMA 3R Ventilated |
| Phase | Three-Phase |
| Line Voltage | 480V-Delta |
| Load Voltage | 208Y/120V |
| E/S Shielded | No |
| Windings | Aluminum |
| Temp. rise | 150° |
| Frequency | 60 Hz |
| Taps | 2 - 2.5% FCAN; 4 - 2.5% FCBN |
| Impedance | 4.6 |
| Total loss (17° C) | 2329.00 |
| Regulation (full load) | PF 1.0=3.44 PF 0.8=4 |
| Efficiency Type | DOE-2016 |
| Minimum Efficiency (35%) | 98.60 |
| Lugs | Primary AL/CU, Secondary AL/CU |
| Sound | 50 db Max |
| Approvals | UL, cUL, DOE |
