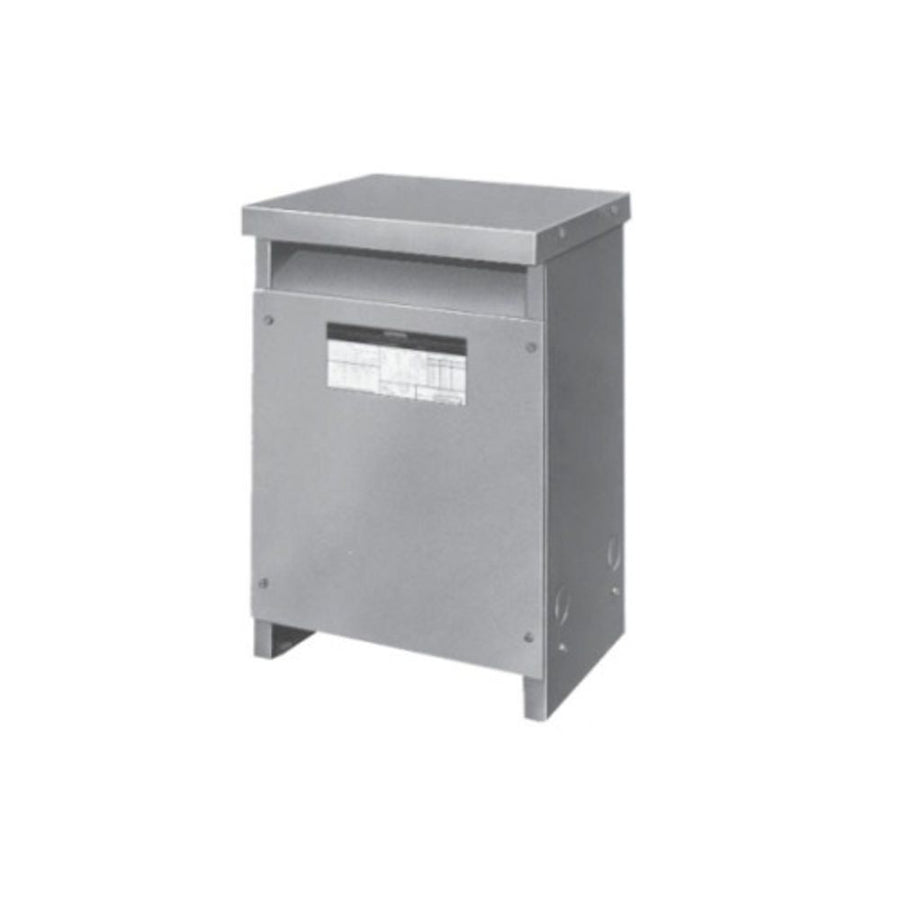

Siemens J Series Low Voltage Ventilated Dry Distribution Transformer, 480 VAC Primary, 208Y/120 VAC Secondary, 150 kVA Power Rating, 60 Hz, 3 Phase, 3F3Y150D16
- ROCK SKU: SIE-3F3Y150D16
- UPC: 804766148682
- MFG Part #: 3F3Y150D16
$7,300.00
Estimated Lead Time: 0-1 weeks
Product dimensions
-
Width:
32.5 IN
-
Height:
42 IN
-
Depth:
33 IN
-
Weight:
1037 LBS
Siemens Low Voltage Low Voltage Distribution Dry-Type Transformers. 3-Phase transformer. Primary voltage: (480V); secondary voltage: (208Y/120) six taps 2.5pct (2 FCAN and 4 FCBN). Rated (150kVA). Special features: K-Factor 1; aluminum windings; 150 DEG C temp rise with 220 insulation class; meets DOE 2016 energy efficiency standards.
| KVA | 150 |
| Compliance | DOE-2016 |
| Line Voltage | 480V-Delta |
| Phase | Three-Phase |
| Load Voltage | 208Y/120V |
| Windings | Aluminum |
| Hertz | 60 Hz |
Product dimensions
-
Width:
32.5 IN
-
Height:
42 IN
-
Depth:
33 IN
-
Weight:
1037 LBS
