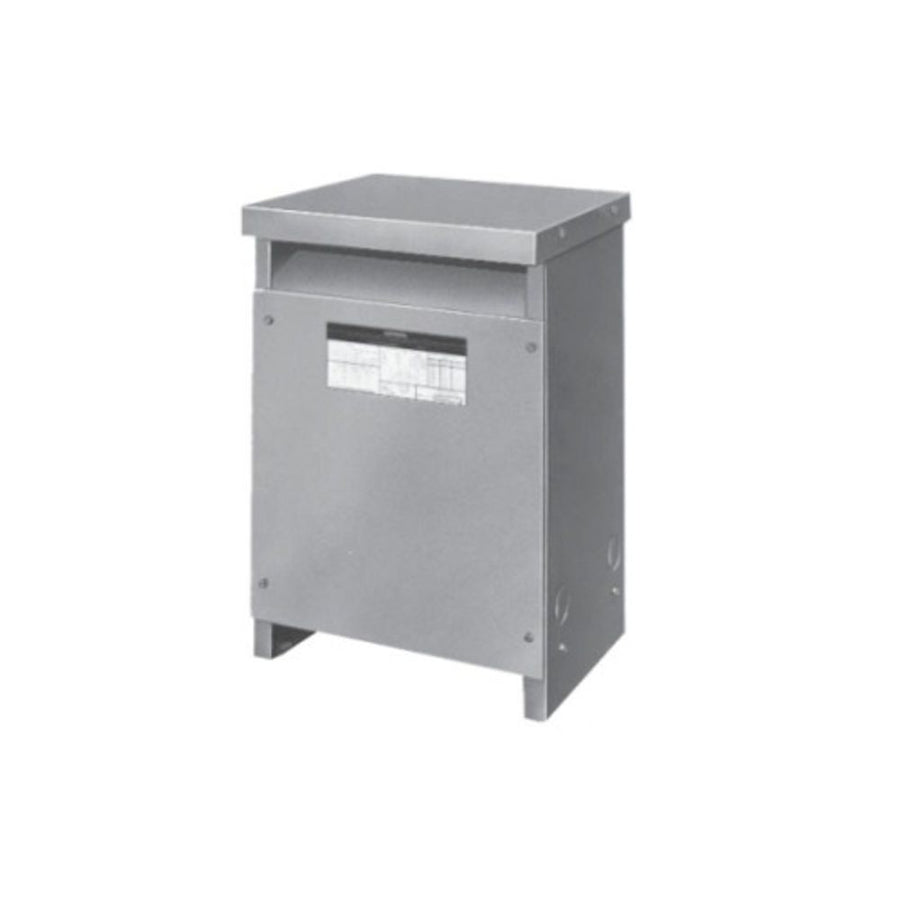

Siemens J Series Low Voltage Ventilated Dry Distribution Transformer, 480 VAC Primary, 208Y/120 VAC Secondary, 75 kVA Power Rating, 60 Hz, 3 Phase, 3F3Y075D16

$4,160.00

Estimated Lead Time: 0-1 weeks

Product dimensions

  • Width:

    27 IN

  • Height:

    32 IN

  • Depth:

    26 IN

  • Weight:

    585 LBS

Siemens Low Voltage Low Voltage Distribution Dry-Type Transformers. 3-Phase transformer. Primary voltage: (480V); secondary voltage: (208Y/120) six taps 2.5pct (2 FCAN and 4 FCBN). Rated (075kVA). Special features: K-Factor 1; aluminum windings; 150 DEG C temp rise with 220 insulation class; meets DOE 2016 energy efficiency standards.


KVA 75.00
Compliance DOE-2016
Line Voltage 480V-Delta
E/S Shielded No
Temp. rise 150°
Taps 2 - 2.5% FCAN; 4 - 2.5% FCBN
Enclosure NEMA 3R Ventilated
Phase Three-Phase
Load Voltage 208Y/120V
Windings Aluminum
Hertz 60 Hz
Approvals UL, cUL, DOE
Wall Bracket TWB75J

Product dimensions

  • Width:

    27 IN

  • Height:

    32 IN

  • Depth:

    26 IN

  • Weight:

    585 LBS
