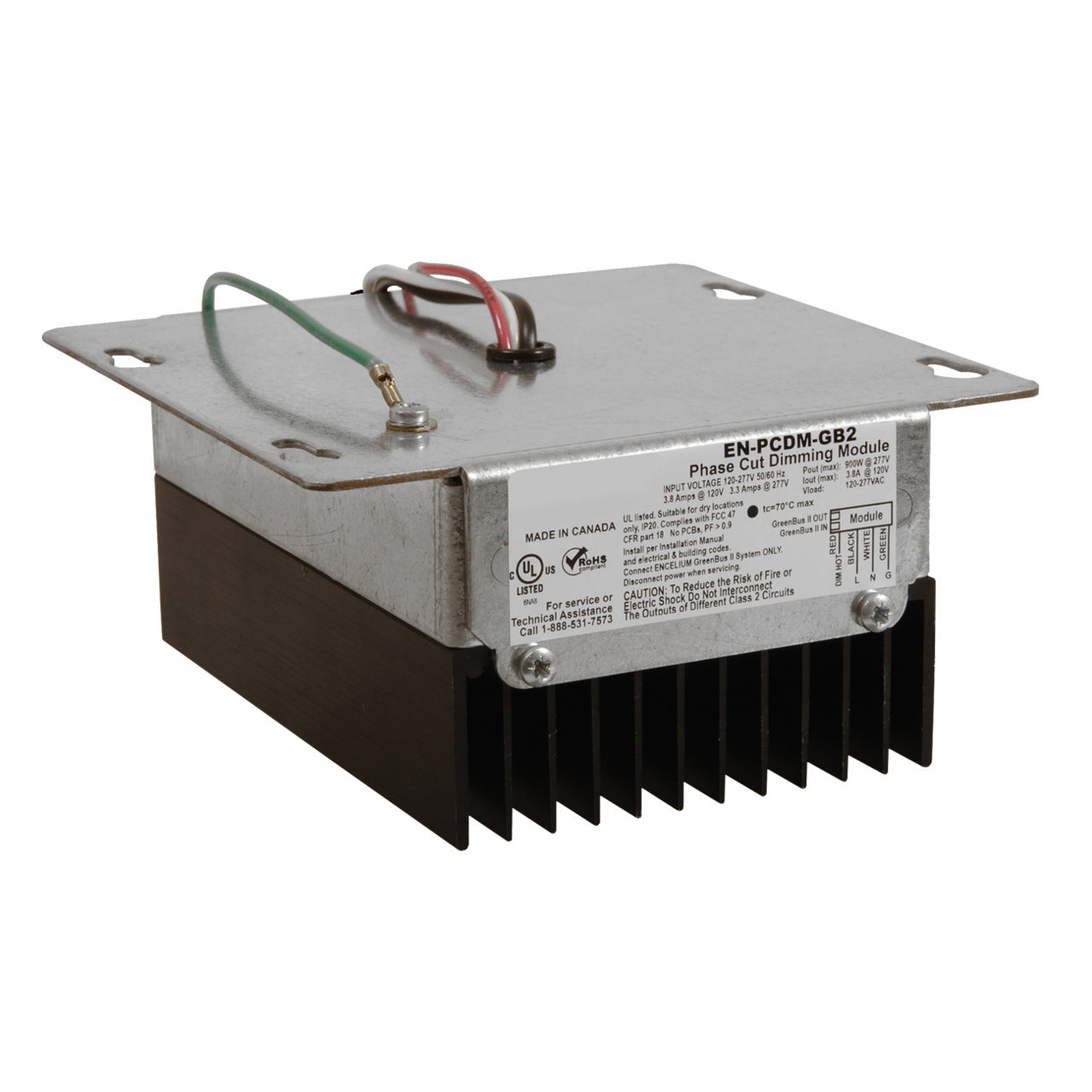

The Wattstopper PLUS EN-PCDM-GB2 Phase-Cut Dimming Module (PCDM) provides an interface between phase-cut dimmable (forward- and reverse-phase) luminaires and the Wattstopper PLUS System. Individually addressable, it lets each group or zone of luminaires be independently controlled and configured. The PCDM controls common load types including incandescent/halogen lamps, fluorescent ballasts, LED luminaires, and compatible LED/CFL lamps, and has a built-in relay that provides ON/OFF switching in addition to smooth dimming. Connected luminaires can then be controlled by any Wattstopper PLUS wall station controller, touch screen panel, or from Polaris™ software. GreenBus wired communication makes wiring fast and error-free.
Mounts on top of a standard 4-11/16" square junction box. Recommended maximum distance between the PCDM and the last luminaire it controls is 50 ft.
| Type | Phase-Cut Dimming Module (Distributed Load Controller) |
| Dimming Output | Phase cut, forward and reverse |
| Voltage | 22.5V, supplied by GreenBus |
| Maximum Output Load | 450 W / 3.8 A @ 120V; 900 W / 3.3 A @ 277V |
| Controllable Load Types | Incandescent/halogen, LED luminaires, fluorescent ballasts, compatible LED/CFL lamps |
| Communication | GreenBus wired |
| Cable Length | 254 mm (10 inches) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Maximum Case Temperature | 32° to 158°F (0° to 70°C) |
| Dimensions | 127 mm (5") x 120.7 mm (4.7") x 57 mm (2.2") |
| Weight | 595.3 g (21 oz) |
| Mounting | Standard 119.1 mm (4-11/16") square junction box |
| Certifications | UL 2043 plenum rated; UL/cUL listed under UL916; FCC Part 18 / CRR 47; EN 61000-4-2; RoHS compliant |
| Warranty | Five years |
