/ LC8 LIGHTING CONTROL PANEL

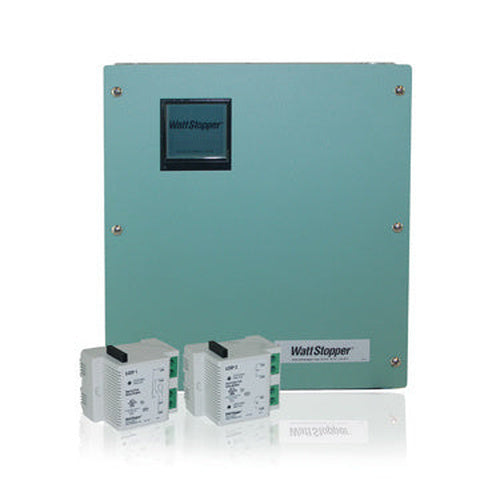

LC8 LIGHTING CONTROL PANEL
- ROCK SKU: LC8-120/277
- UPC: 754182931804
- MFG Part #: LC8-120/277
$1,015.40
$725.29
Product dimensions
-
Width:
2.9 in
-
Height:
14.4 in
-
Depth:
517.8 cu in
-
Weight:
12.4 in
The LC8 panel provides zone-based control of up to eight channels, or zones, of interior and exterior lighting. Zones respond to control signals from the system clock, or an accessory photocell, to automatically turn lighting on and off. The LC8 panel uses interchangeable relay modules, available separately, that can be selected to suit project needs. Relay options include the LCSP-2 dual single-pole module and LCDP1 double-pole module.
- Versatile panel for simple control of indoor and outdoor lighting
- Easy-to-use touchscreen interface with onscreen help
- Accommodates single-pole and two-pole relay modules
- Astronomic system clock with 16 schedules for flexibility
- Compatible with low voltage switches, occupancy sensors and photocells
| Brand | Wattstopper |
| Color | Green |
| Product Series | LC8 |
| Type | Relay Panel |
| Finish | Painted |
| Application Sector | Commercial |
| Product Line | Wattstopper |
| Country Of Origin | China |
| Features | 8 Inputs for Low Voltage Switches, LCD Screen, Touchscreen |
| Installation Location | Wall |
| Warranty Type | 1-Year |
| Standard | UL |
| UPC Number | 754182931804 |
| RoHS Compliant | This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863. |
| Compatibility | AS-100, EM-24D2, LVSW |
| Gauge | 14 |
| Indicator | Relay Status LED |
| Indoor/Outdoor | Indoor |
| Input Voltage | 120/277 VAC |
| Line Frequency | 50 Hz, 60 Hz |
| Load Rating | 20 A @ 120/277 VAC, 20 A @ 208 VAC, 20 A @ 240/480 VAC (2 phase) |
| Mounting Type | Screw Holes |
| Number of Poles | Double Pole, Single Pole |
| Number of Ports | 16 |
| Timer Type | Astronomical |
| Number of Relays | 8 |
