Wattstopper DLM Wired Standard Wall Switch, 2-Button, 2-Rocker, Gray, LMSW-222-GRY

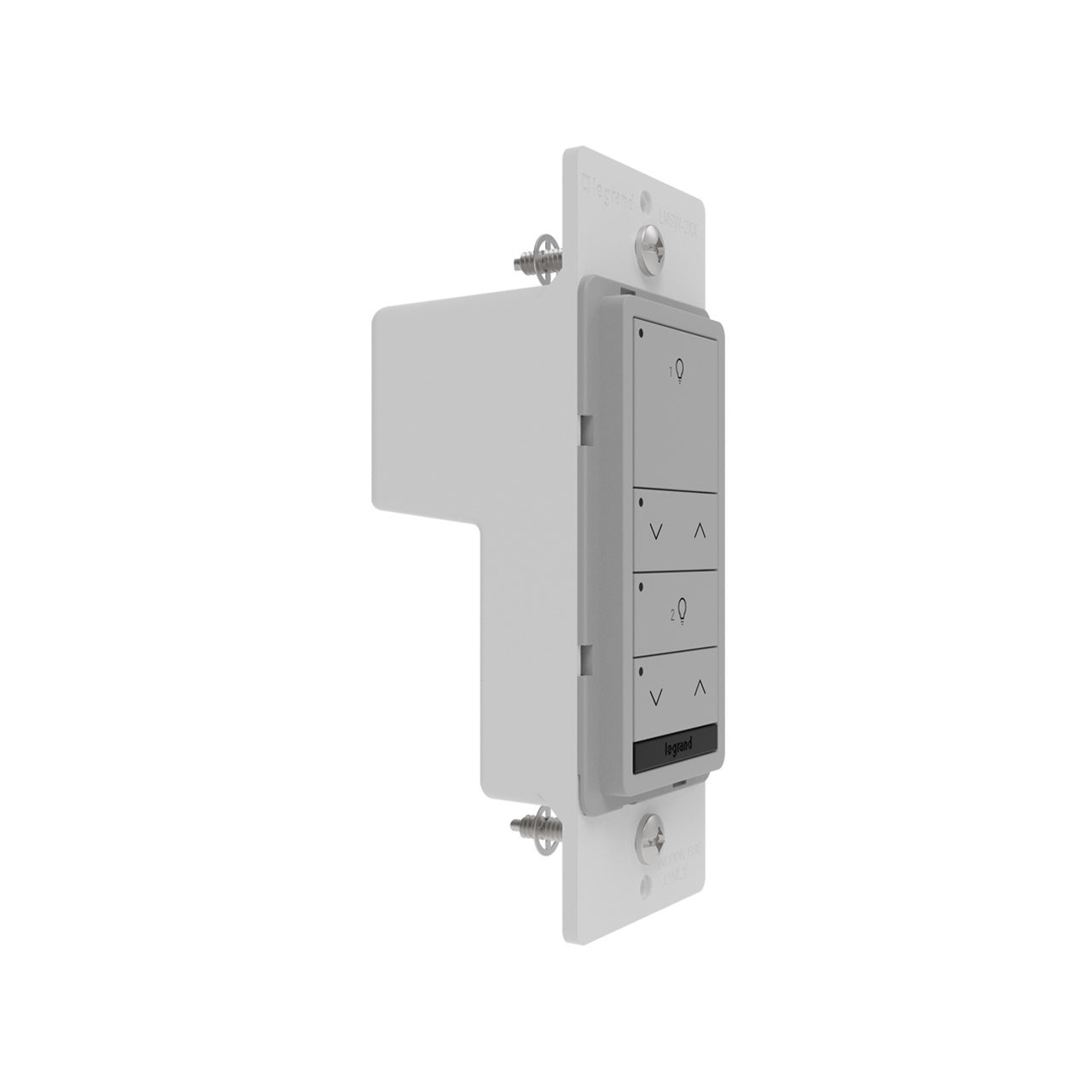

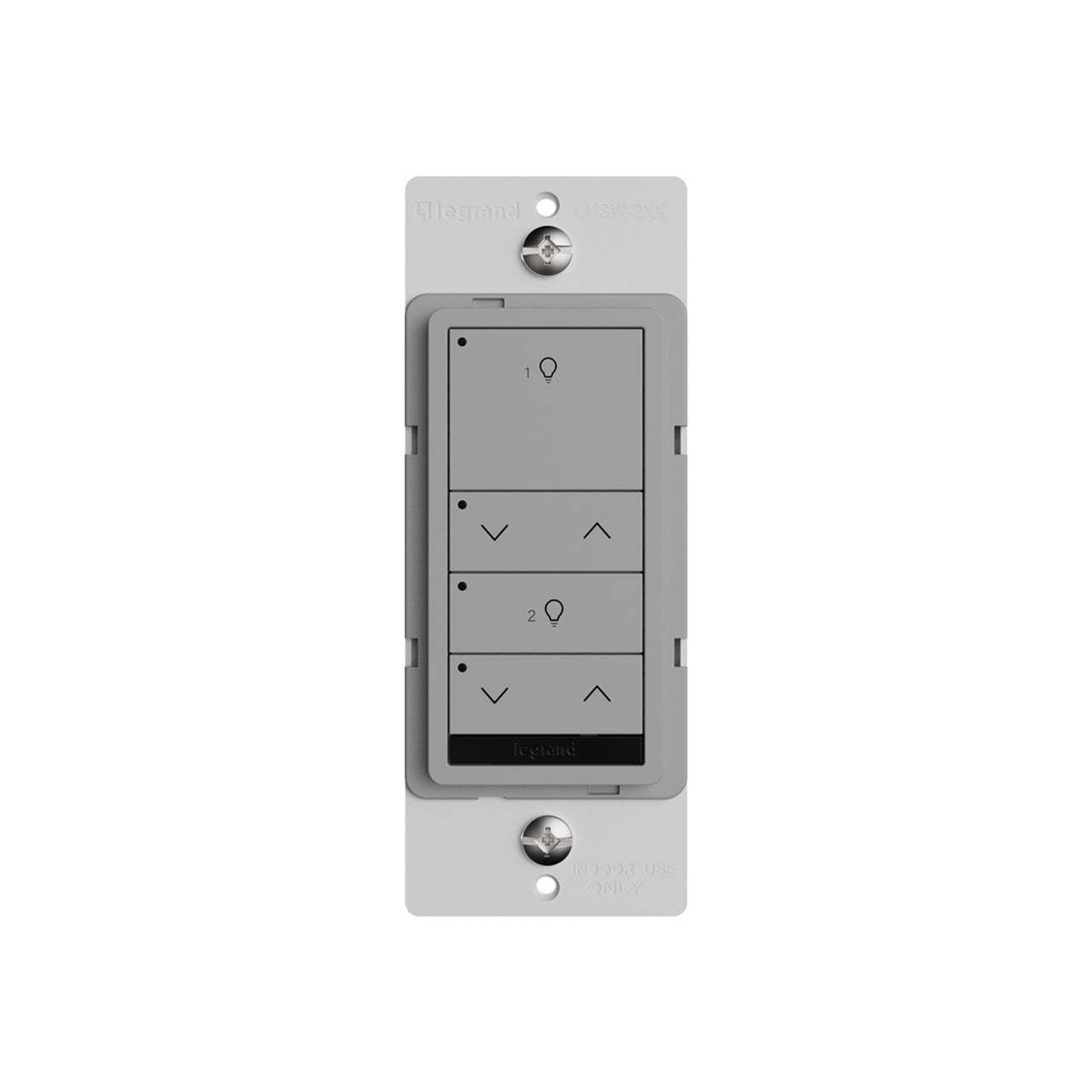

The Wattstopper LMSW-222-GRY is a 2-button, 2-rocker DLM Wired Standard Wall Switch in Gray. LMSW-200 Series wall switches are programmable, low voltage devices for manual on/off, dimming and scene control of one or more loads from one or more locations. They are part of the Digital Lighting Management (DLM) system and can control any load(s) connected to DLM room controllers.

Common application: Dual-zone Dimming.

• Input voltage: 24VDC from the DLM local network
• Current consumption: 5mA
• DLM local network connection: 2 RJ45 ports; components plug together on a free-topology Category 5e DLM local network
• Infrared (IR) transceiver for wireless configuration and remote control
• Plug n' Go automatic configuration and Push n' Learn personalization
• Each button and rocker has an LED showing the status of the load(s) or scene assigned to it
• Operates on Class 2 power supplied to a DLM local network by one or more room controllers
• Sleek single gang device; fits standard single gang boxes and decorator wall plates
• Dimensions: 4.1 in (104 mm) x 1.7 in (43 mm) x 1.3 in (33 mm)
• Operating conditions: for indoor use only; 32-131°F (0-55°C); 5-95% RH, non-condensing
• UL and cUL listed; FCC Part 15 compliant; meets the materials restrictions of RoHS
• Five year warranty

Note: switches do not include face plates. Order a decorator style plate separately.
