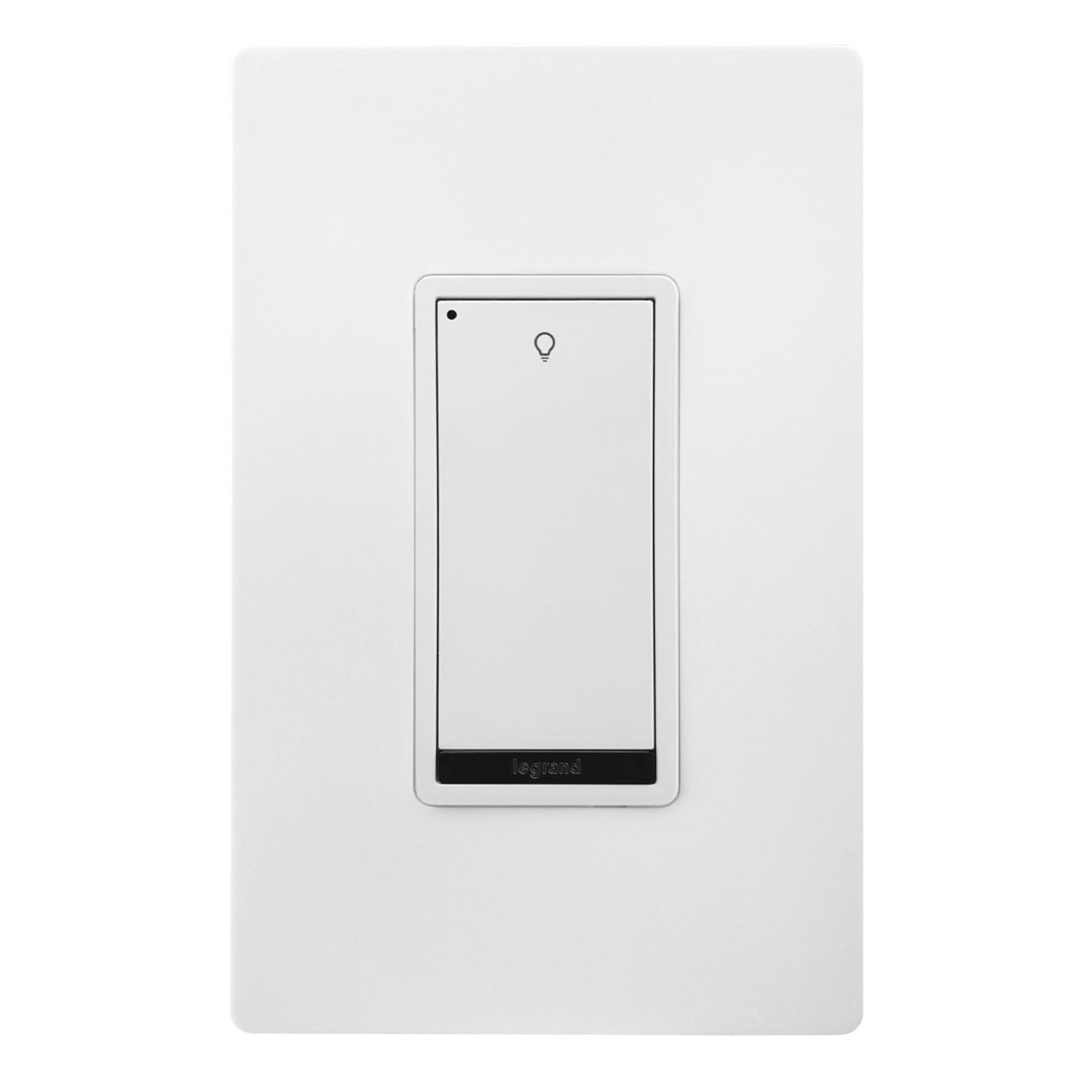

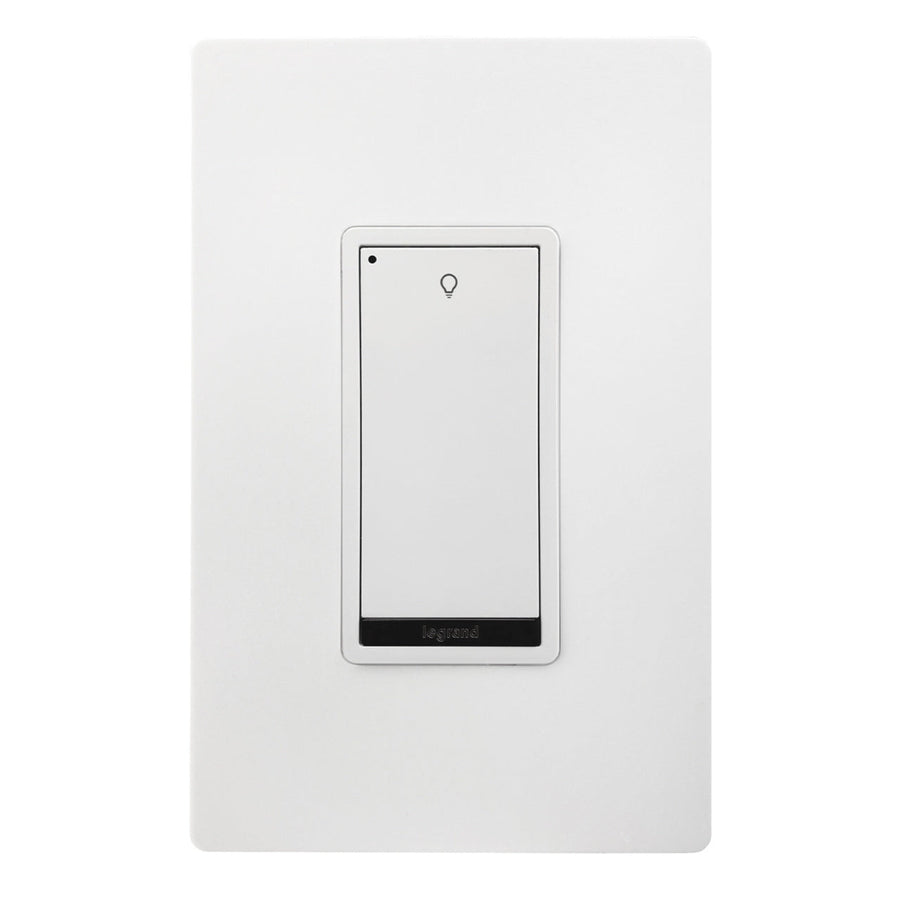

Wattstopper DLM Wired Standard Wall Switch, 1-Button, White, LMSW-210-W

ROCK SKU: WAT-LMSW-210-W
MFG Part #: LMSW-210-W

$80.04

Spec Sheet

Estimated Lead Time: 1 week

The Wattstopper LMSW-210-W is a DLM Wired Standard Wall Switch with a 1-button layout, for programmable low-voltage single-zone on/off control of one or more loads from one or more locations. Part of the LMSW-200 Series, it operates on Class 2 power supplied to a DLM local network by one or more room controllers and integrates with Wattstopper Digital Lighting Management (DLM) systems. Plug n' Go automatic configuration assigns button behavior; Push n' Learn allows reconfiguration. The button LED shows the status of the assigned load or scene, and an infrared transceiver allows two-way wireless configuration. Finished in white.

Face plates are not included — order a decorator style plate separately.

Type	DLM Wired Standard Wall Switch
Configuration	1-Button — Single-zone On/Off
Finish	White
Input Voltage	24VDC from DLM local network
Current Consumption	5mA
Network Connection	2 RJ45 ports; Cat 5e free-topology DLM local network
Wireless	Infrared (IR) transceiver, two-way
Operating Conditions	Indoor use only; 32-131°F (0-55°C); 5-95% RH, non-condensing
Dimensions	4.1" (104mm) H x 1.7" (43mm) W x 1.3" (33mm) D
Mounting	Standard single gang box
Listings	UL and cUL listed; FCC Part 15 compliant; RoHS
Warranty	Five years
