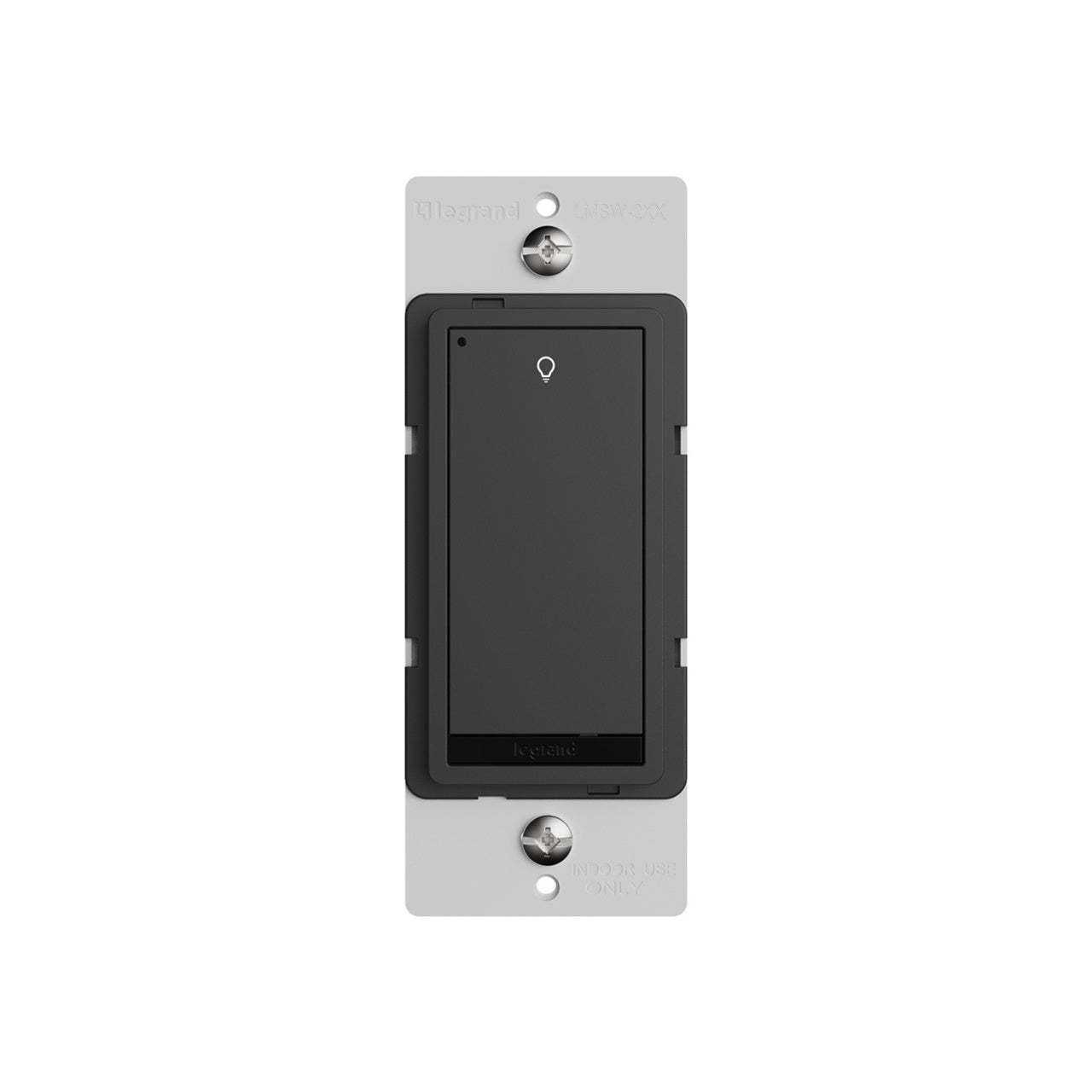

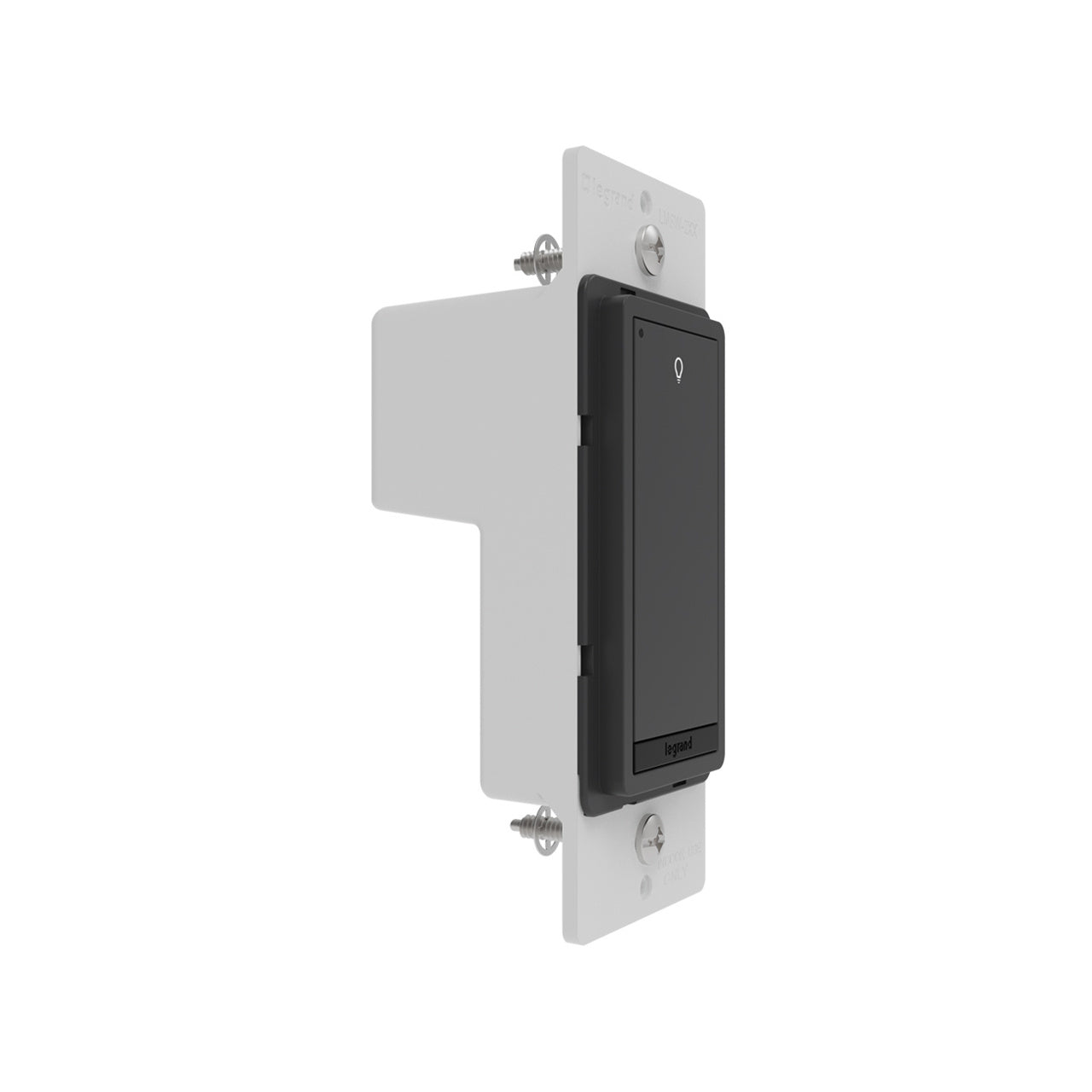

Wattstopper DLM Wired Standard Wall Switch, 1-Button, Black, LMSW-210-BK
- ROCK SKU: WAT-LMSW-210-BK
- UPC: 754182000241
- MFG Part #: LMSW-210-BK
$87.19
The Wattstopper LMSW-210-BK is a DLM Wired Standard Wall Switch with a 1-button layout, for programmable low-voltage single-zone on/off control of one or more loads from one or more locations. Part of the LMSW-200 Series, it operates on Class 2 power supplied to a DLM local network by one or more room controllers and integrates with Wattstopper Digital Lighting Management (DLM) systems. Plug n' Go automatic configuration assigns button behavior; Push n' Learn allows reconfiguration. The button LED shows the status of the assigned load or scene, and an infrared transceiver allows two-way wireless configuration. Finished in black.
Face plates are not included — order a decorator style plate separately.
| Type | DLM Wired Standard Wall Switch |
| Configuration | 1-Button — Single-zone On/Off |
| Finish | Black |
| Input Voltage | 24VDC from DLM local network |
| Current Consumption | 5mA |
| Network Connection | 2 RJ45 ports; Cat 5e free-topology DLM local network |
| Wireless | Infrared (IR) transceiver, two-way |
| Operating Conditions | Indoor use only; 32-131°F (0-55°C); 5-95% RH, non-condensing |
| Dimensions | 4.1" (104mm) H x 1.7" (43mm) W x 1.3" (33mm) D |
| Mounting | Standard single gang box |
| Listings | UL and cUL listed; FCC Part 15 compliant; RoHS |
| Warranty | Five years |
