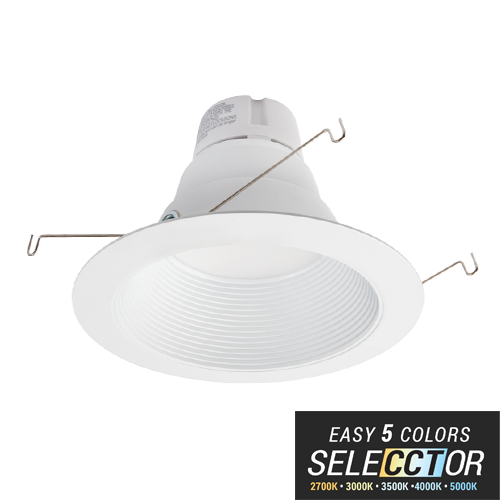

Elite Lighting RL631 6 In. LED Retrofit Baffle Module, 1040 lm, CCT Selectable, 120V, RL631-1200L-DIMTR-120-CCT
- ROCK SKU: ELI-RL631-1200L-DIMTR-120-CCT
- UPC:
- MFG Part #: RL631-1200L-DIMTR-120-CCT
The Elite Lighting RL631-1200L-DIMTR-120-CCT is a 6-inch LED retrofit baffle module engineered for new and existing construction, delivering 1040 lumens at 90+ CRI with field-selectable CCT on 120V. Compatible with Elite's dedicated IC-AT housings as well as most standard 6-inch incandescent recessed housings, it meets California Title 24, IECC, New York and Washington state energy codes, and carries cULus wet and damp location listings. Triac-dimmable with 3-Step MacAdam Ellipse binning and RoHS compliance make this module a specification-ready solution for retrofit and new-construction downlight projects.
| Lumens | 1040 lm |
| Color Temperature | CCT Selectable (2700K/3000K/3500K/4000K/5000K available) |
| CRI | 90 CRI |
| Voltage | 120V |
| Compatibility | Elite LD6IC-AT, LD6RIC-AT, or most 6-inch incandescent housings |
| Finish | Baffle |
| Certifications | cULus, RoHS, IECC, UL/cUL Wet/Damp Location, California Title 24, LM79/LM80 |
| Features | 3 MacAdam Ellipse binning, Edison Socket-free design |
