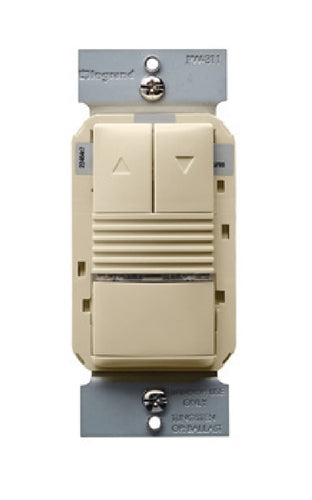

Wattstopper 0-10V PIR Wall Switch Occupancy Sensor, 120/277V, Ivory, PW-311-I
- ROCK SKU: WAT-PW-311-I
- UPC: 754182939046
- MFG Part #: PW-311-I
$149.00
$102.90
Product dimensions
-
Width:
2.73 IN
-
Height:
1.76 IN
-
Depth:
1.83 IN
-
Weight:
0 LBS
The PW-311 passive infrared (PIR) dimming wall switch sensor can turn lights OFF and ON based on occupancy and allow the user to increase or decrease the lighting level. It works with 0-10 VDC dimming drivers and ballasts to control lighting loads including LEDs.
- Complies with 2017 NEC requirements (PW-311)
- Vandal resistant lens combines precise coverage with durability
- Presentation mode may be deactivated to allow Auto-ON operation after 15 second time delay
- Optional Smart Light Level adapts ambient light hold off threshold to meet user needs
- Selectable walk-through mode turns lights off three minutes after the room is initially occupied if no motion is detected after the first 30 seconds
- Test mode allows quick and easy verification of coverage
- Selectable audible and/or visual alerts for impending shutoff
- LED indicates occupancy detection
- Service mode allows sensor to operate as a service switch in the unlikely event of a failure
- Zero-crossing for long relay life
- No derating required for multi-gang applications
| Brand | Wattstopper |
| Manufacturer Part Number | PW-311-I |
| Color | Ivory |
Product dimensions
-
Width:
2.73 IN
-
Height:
1.76 IN
-
Depth:
1.83 IN
-
Weight:
0 LBS
