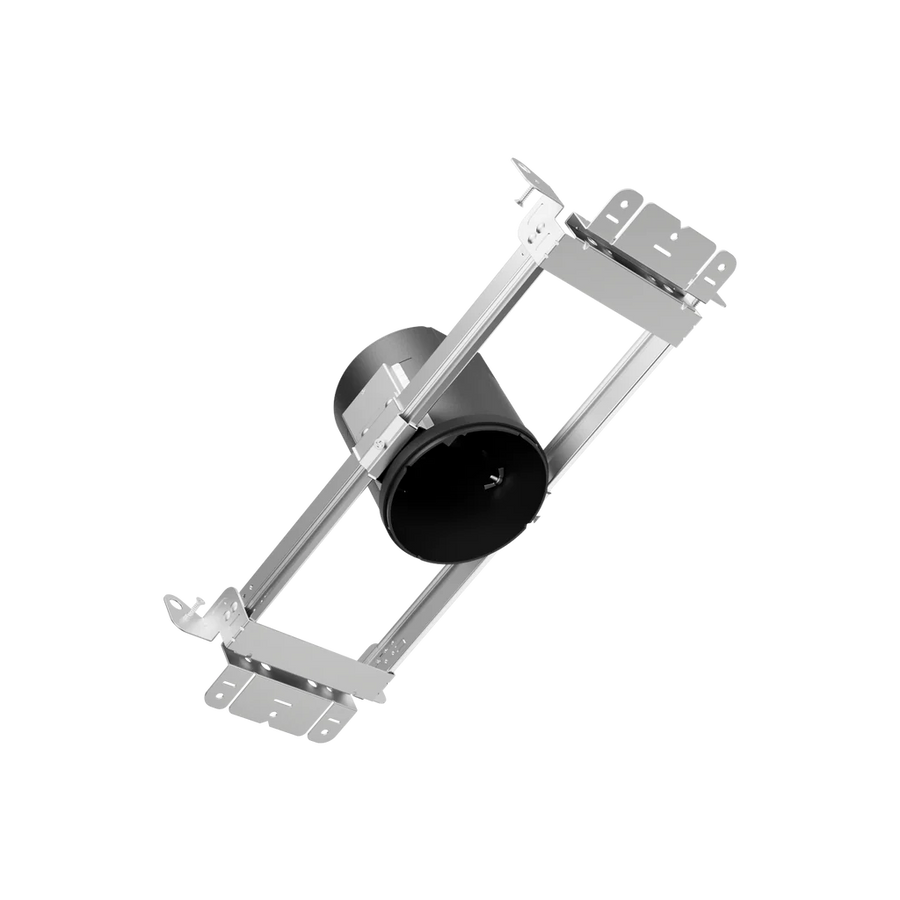

DMF Lighting M Series 4" Round New Construction Recessed Housing, M4NCRS
- ROCK SKU: DMF-M4NCRS
- UPC:
- MFG Part #: M4NCRS
$24.25
The DMF M Series 4" Round New Construction Housing (M4NCRS) is a high-performance modular recessed housing for demanding commercial applications. Supports 0-10V, DALI-2, TRIAC/ELV, and Lutron Athena wireless dimming. IP66 and Chicago Plenum configurations available. Accepts all M-Series 4" modules, optics, and trims. Component: Housing only. Requires M-Series module and trim — sold separately. 120/277V, 5-year warranty.
| EXAMPLE | DRD2X-GA |
| DRD2X-GA Fixed Conversion Kit | DRD2 Module to General Ambient (90°+) |
| DRD2X-OP Fixed Optics Kit | Narrow Spot (15°), Spot (25°), Flood (40°), Wide Flood (60°), Linear Spread (40° x 20°), Soft Focus |
| INPUT VOLTAGE | 120/277V, 50/60Hz |
| MAX INPUT CURRENT (120V) | 0.130 amps |
| MAX INPUT CURRENT (277V) | 0.065 amps |
| POWER FACTOR | Greater than 0.9 |
| AMBIENT OPERATING TEMPERATURE | -20°C to 40°C |
| WARRANTY | 5 year limited warranty; 50,000 hours at 70% |
| JUNCTION BOX | Equipped with (4) trade size concentric |
| MOUNTING | (2) external tabs for wood, steel or |
| CEILING | Pre-installed mounting brackets allow vertical |
| LISTINGS | Metallic outlet box certified UL514A, concrete tight, |
| WATTAGE IN EM STATE | 5W |
| LUMEN OUTPUT IN EM STATE | LPW x 5 |
| Beam Angle | 55° |
