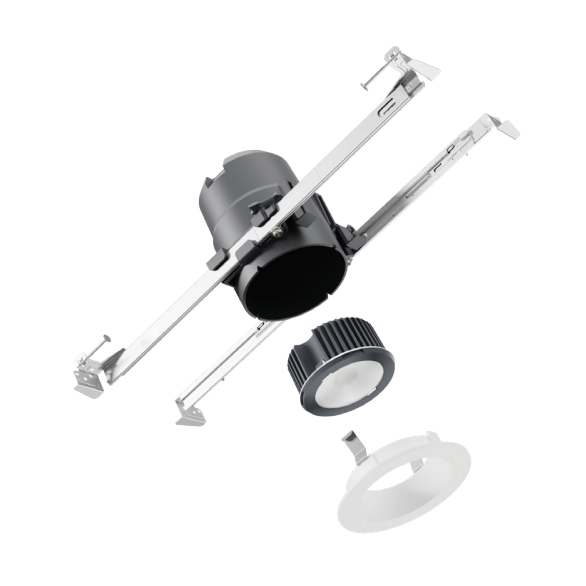

DMF Lighting H Series 4" New Construction Recessed Housing, H4BH
$9.00

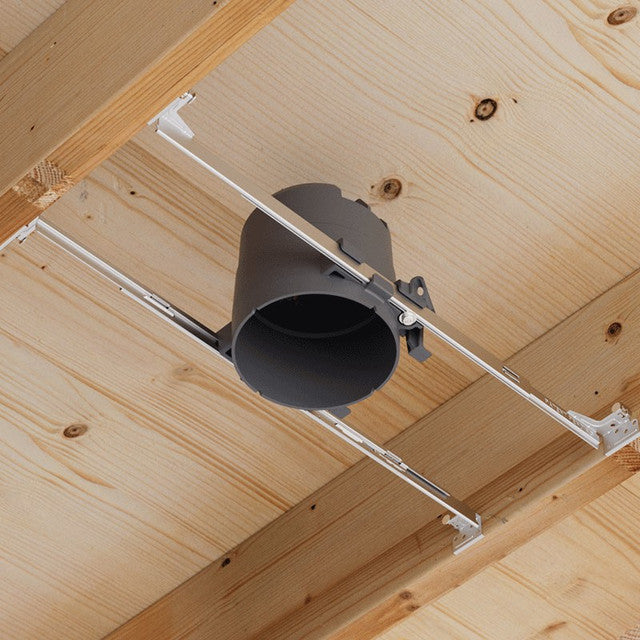

The DMF H Series 4" New Construction Housing (H4BH) is a bar-hanger recessed housing for new construction installations. IC rated, airtight, fire rated up to 2-hour assemblies, Chicago plenum rated option, and Title 24 JA8 compliant. Accepts all H-Series 4" modules and trims. Component: Housing only. Requires H-Series module (e.g., HM27, HM30) and H4 trim — sold separately.
| EXAMPLE | HM30 |
| INPUT VOLTAGE | 120V, 50/60Hz |
| MAX INPUT CURRENT (120V) | 0.13 amps |
| POWER FACTOR | Greater than 0.9 |
| AMBIENT OPERATING TEMPERATURE | -20°C to 40°C |
| WARRANTY | 5 year limited warranty; 50,000 hours at 70% |
| BAR HANGER MOUNTING | Pre-installed mounting brackets |
| CEILING THICKNESS RANGE | 5/8" up to 1 1/4" |
| MOUNTING | Pre-installed mounting brackets allow for adjustment |
| JUNCTION BOX | Equipped with (4) 1/2" trade size knockouts (two |
| CEILING | Pre-installed mounting brackets allow vertical |
| LISTINGS | Metallic outlet box certified UL514A, code compliant |
| Input Watts | 9.0 W |
| Lumens | 764 lm |
| Efficacy | 85 lm/W |
| Beam Angle | 99° |
