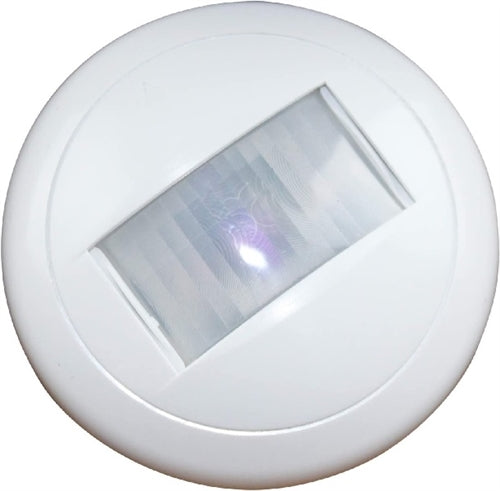

Wattstopper Daylighting Sensor, 0 -10 VDC Dimming Photosensor, White, LS-301
- ROCK SKU: WAT-LS-301
- UPC: 754182914265
- MFG Part #: LS-301
$232.00
$160.81
Product dimensions
-
Width:
2.35 IN
-
Height:
0.875 IN
-
Depth:
0 IN
-
Weight:
0 LBS
The LightSaver LS-301 is a closed loop; ceiling mount; low voltage indoor photosensor that works with standard; 0–10 VDC electronic dimming ballasts or compatible LED drivers to dim lighting as daylight increases
- Provides precise control of lighting to maintain desired light level
- Extremely linear photocell response with greater than 1% accuracy
- Designed to measure light as the human eye perceives it; eliminating "overreporting" illumination levels provided by daylight
- California Title 24-2013 compliant
- Separate handheld remote controls for setup and occupant adjustment to prevent tampering
- Boosts energy savings by reducing maximum lamp output; often resulting in a 20% reduction or more compared with lights at full output
- Achieves lumen maintenance by holding target light level as lamp output decreases over time
- Full range dimming: .2 VDC (minimum) to 10 VDC (100% lighting) output voltage
- Current consumption: 30 mA @ 24 VDC
- In typical applications; setpoints are adjustable from 20-60 footcandles (210-640 lux)
- Controls up to 50 standard dimming ballasts in one zone
Brand | Wattstopper |
Manufacturer Part Number | LS-301 |
Color | White |
