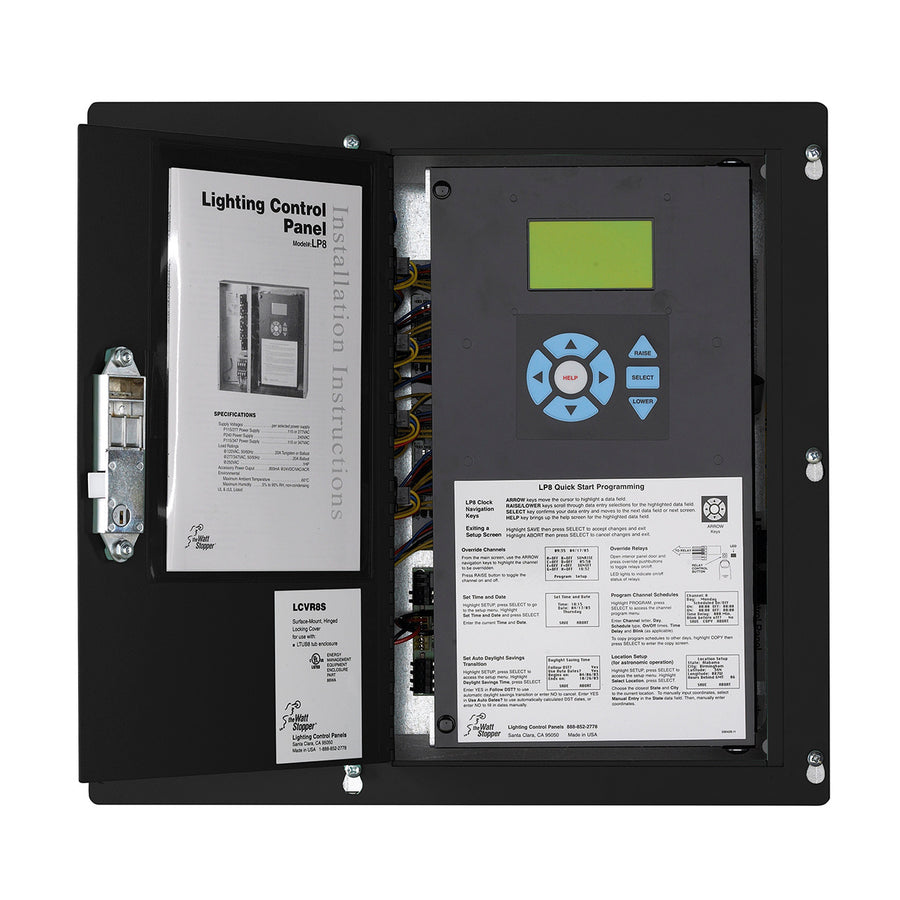

Wattstopper LP8 Peanut Panel w/8 Relays, 115 /277 V, Surface Mount, Black, LP8S-8-115
- ROCK SKU: WAT-LP8S-8-115
- UPC: 754182914081
- MFG Part #: LP8S-8-115
$2,360.00
$1,685.71
Product dimensions
-
Width:
4.6 IN
-
Height:
15.1 IN
-
Depth:
16.5 IN
-
Weight:
Wattstopper’s LP8 Peanut Lighting Control Panels provide simple, effective zone-based control of exterior and interior lighting in small applications. Panels control up to eight channels or zones of lighting. Zones respond to control signals from the system clock (or other signaling device) to turn lighting on and off. LP8 Panels ship pre-assembled in easy-to-install compact packages available for surface and flush mounting. They consist of relays, a system clock, panel intelligence, power supply, tub and cover. The standard enclosure is NEMA 1-rated.
- 240V power supply no longer available
- Simple and effective interior and exterior lighting control
- Controls up to eight single-pole lighting circuits
- Easy user interface with on-screen help
- Compatible with AS-100 Automatic Control Switches for local override control
- System clock provides time scheduled or astronomic control
| Brand | Wattstopper |
| Color | Black |
| Product Series | LP8 |
| Type | Relay Panel |
| Finish | Painted |
| Application Sector | Commercial |
| Product Line | Wattstopper |
| Country Of Origin | United States |
| Features | 8 Inputs for Low Voltage Switches, LCD Screen |
| Installation Location | Wall |
| Warranty Type | 1-Year |
| Standard | UL 20, UL |
| UPC Number | 754182914081 |
| DesignLights Consortium Qualified System | Yes |
| Security | This product is ioXt certified |
| RoHS Compliant | This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863. |
| Compatibility | AS-100, EM-24D2, LVSW |
| Enclosure Type | NEMA 1 |
| Indicator | Relay Status LED |
| Indoor/Outdoor | Indoor |
| Input Voltage | 115/277 VAC |
| Line Frequency | 50 Hz, 60 Hz |
| Load Rating | 20 A @ 120/347 VAC, 30 A @ 277 VAC |
| Mounting Type | Screw Holes, Surface |
| Number of Poles | Single Pole |
| Timer Type | Astronomical |
