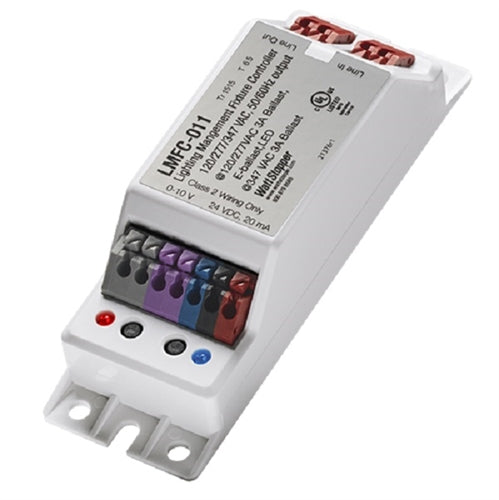

The LMFC-011 Fixture Controller mounts in individual lighting fixtures to give them connectivity to a Digital Lighting Management (DLM) system. The controller provides a 0-10 volt signal for control of dimmable loads including compatible LED drivers and electronic ballasts and connects to the DLM local network via a single- or dual-port RJ45 wiring whip (ordered separately). Each DLM local network can support up to 64 loads. The local network must be powered by a device such as a power booster; zone controller or room controller.

• Input voltage: 24VDC
• Current consumption: 7mA
• Load rating: 120/277/347VAC; 50/60Hz; max load 3A; mechanically latching relay rated for ballast; tungsten; E-ballast; CFL and LED
• Class 2 dimming control signal: 0-10VDC; sinks up to 3mA for control of compatible ballasts; IEC 60929
• Selectable load parameters: High trim (1-100%); Low trim (0-99%); Scene 1-16 levels (all: 0-100%); Fade time (0 seconds - 18 hours); Preset on level (1-100%); Lamp burn in time (0; 12 or 100 hours)
• Local override button for On/Off/Dim; blue LED indicates status of load
• Cable connectors allow flexible mounting of controller and wiring port in optimal locations
• Weight: LMFC-011 with cable connector 3.7 oz (105 g)
• Indoor use only
• Operating Temperature: @ 120/277V: 32°F to 158°F (0°C to 70°C); @ 347V: 32°F to 133°F (0°C to 55°C)
• Operating Humidity: 5% to 95%; non-condensing
