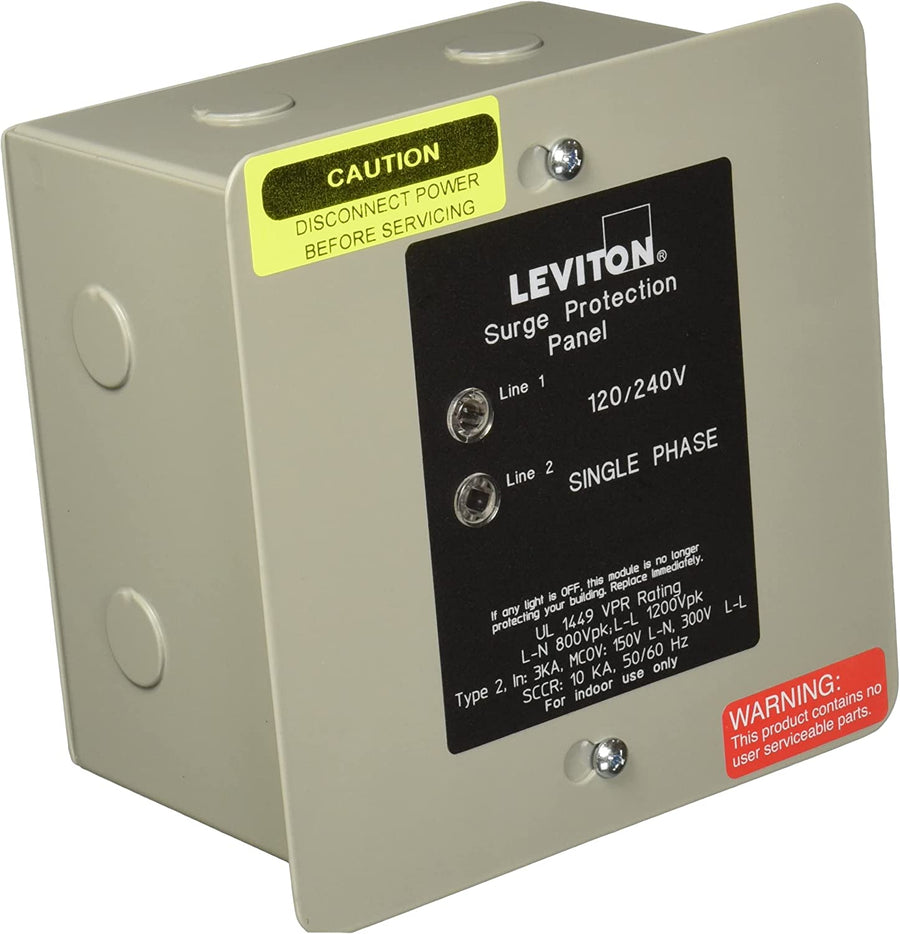

Leviton Type 2 Single Phase Surge Panel with 4-Mode Protection 51120-1

Part Number: 51120-1
UPC: 078477827642

Description

120/240V Single Phase Panel Mount Surge Protective Device, 4-Mode Protection, 50kA Max Surge Current Rating, NEMA 1 Enclosure, UL 1449 4th Edition Type 2 Leviton’s Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton’s outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive microcircuitry, providing protection against catastrophic failure, costly downtime, and data disruptions

Electrical Specifications

EMI/RFI Noise Rejection: (-6 to -28dB @ 100KHz to 100MHz)
Frequency: 50/60Hz
Recommended Circuit Breaker Rating: 20A, 120/240V
Surge Technology: 40mm MOV Design
Voltage Configuration: 120/240 V, Single (Split) Phase


Environmental Specifications

Enclosure: Type 1
Flammability: Rated V-2 per UL 94
Operating Temperature: -10°C to 60°C
Relative Humidity: 5% to 95% non-condensing
Storage Temperature Range: -20C to 85C


Material Specifications

Outer Enclosure: Powder Coated Steel


Mechanical Specifications

Connection Type: Parallel - Hardwired via 12 AWG Wire
Diagnostics: Protection Status LEDs
Surge Counter: No
