Wattstopper HB300B High Bay Sensor, 24 VDC, 360° Lens, 40 ft Mount Height, HB300B-L7
- ROCK SKU: WAT-HB300B-L7
- UPC: 754182940806
- MFG Part #: HB300B-L7

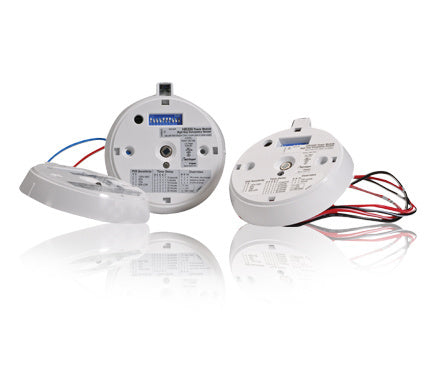

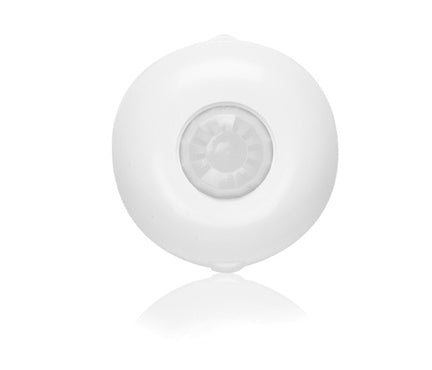

The Wattstopper HB300B-L7 is a 24 VDC PIR high bay occupancy sensor with an integrated 360° lens for a 40 ft mounting height and 100 ft diameter sensing coverage, packaged with a back box for fixture-embedded installation in warehouses and industrial high bay spaces. The modular sensor pairs the HB300-B power module with the HBL7 lens and connects to BZ Power Packs for line or low voltage control, with DIP switch–selectable time delay from 15 seconds to 30 minutes and PIR sensitivity adjustment (Min/Med/Max). UL listed, RoHS compliant; rated for damp locations; 5-year warranty.
| Sensor Technology | Passive Infrared (PIR) |
| Voltage | 24 VDC |
| Coverage | 360° Pattern, 100 ft Diameter @ 40 ft Mounting Height |
| Sensitivity | Adjustable (Min/Med/Max) |
| Timer Duration | 15 Seconds to 30 Minutes |
| Current Draw | 11 mA |
| Mounting | Fixture Embedded |
| Included | Back Box, 360° Lens |
| Warranty | 5-Year |
| Certifications | UL, RoHS |
