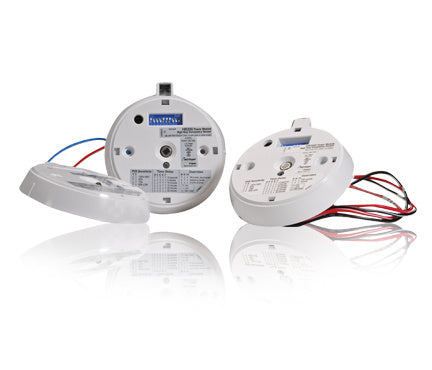

Wattstopper High Bay Occupancy Sensor, 347/480 VAC, PIR, Adjustable Time Delay, HB340
- ROCK SKU: WAT-HB340
- UPC: 754182920358
- MFG Part #: HB340
The Wattstopper HB340 is a PIR high bay occupancy sensor rated for 347/480 VAC operation, designed for automatic lighting control in commercial warehouses and indoor high bay installations via fixture-embedded mounting. Sensitivity is field-adjustable (Min/Med/Max) and time delay is configurable via DIP switch from 15 seconds to 30 minutes; load rating is 5A at 347/480 VAC. UL listed and RoHS compliant with a 5-year warranty; pairs with separately ordered HBLx lenses covering mounting heights of 20–40 feet.
| Sensor Type | Occupancy (PIR) |
| Input Voltage | 347/480 VAC |
| Load Rating | 5 A @ 347/480 VAC |
| Timer Duration | 15 Seconds, 5–30 Minutes |
| Sensitivity | PIR (Min/Med/Max) |
| Mounting | Fixture Embedded |
| Location Rating | Damp |
| Operating Temperature | 32–158°F |
| Warranty | 5-Year |
| Compliance | UL, RoHS |
