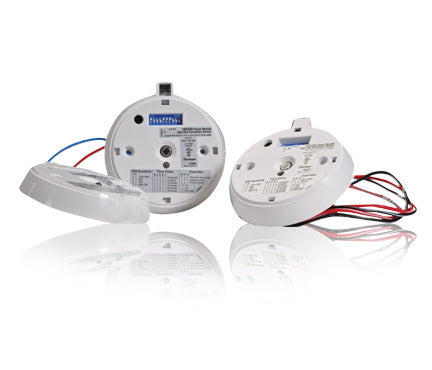

Wattstopper HB300 High Bay Control Module, 24 VDC, PIR Occupancy, White, HB300-B
- ROCK SKU: WAT-HB300-B
- UPC: 754182923168
- MFG Part #: HB300-B
The Wattstopper HB300-B is a 24 VDC PIR occupancy sensor power module designed for automatic lighting control in warehouses and indoor high bay spaces, supplied with a back box for fixture-embedded or ceiling installation. The modular design pairs with separately ordered HBLx lenses to support mounting heights from 20 to 40 feet, and is compatible with BZ Power Packs for line or low voltage configurations. UL listed, RoHS compliant, DLC qualified; features DIP switch–selectable time delay from 15 seconds to 30 minutes and PIR sensitivity adjustment (Min/Med/Max); 5-year warranty.
| Sensor Technology | Passive Infrared (PIR) |
| Voltage | 24 VDC |
| Sensitivity | Adjustable (Min/Med/Max) |
| Timer Duration | 15 Seconds to 30 Minutes |
| Current Draw | 11 mA |
| Mounting | Fixture Embedded |
| Included | Back Box, Lens (Separate) |
| Warranty | 5-Year |
| Certifications | UL, RoHS, DLC Qualified |
