Wattstopper High Bay Base Module, 120/277 VAC, Cold Temperature, w/ J-Box, HB350C-B
- ROCK SKU: WAT-HB350C-B
- UPC: 754182923991
- MFG Part #: HB350C-B

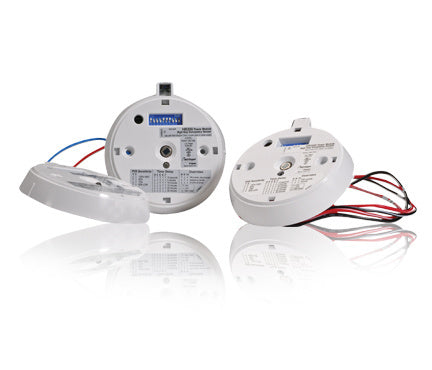

The Wattstopper HB350C-B is a cold-temperature PIR high bay base module rated for 120/277 VAC, designed for occupancy-based lighting control in industrial high bay environments with low ambient temperature requirements, and includes a back box (J-box) for ceiling or fixture-embedded mounting. Operating temperature range spans -40°F to 131°F, making it suitable for refrigerated warehouses and cold storage facilities; load rating is 1,200W at 277 VAC / 800W at 120 VAC with DIP-switch time delay (15 seconds to 30 minutes) and adjustable PIR sensitivity. UL listed and RoHS compliant with a 5-year warranty; compatible with all electronic ballasts and requires a separately ordered modular lens.
| Sensor Type | Occupancy (PIR) |
| Input Voltage | 120/277 VAC |
| Load Rating | 1200 W @ 277 VAC / 800 W @ 120 VAC |
| Operating Temperature | −40–131°F |
| Timer Duration | 15 Seconds, 5–30 Minutes |
| Sensitivity | PIR (Min/Med/Max) |
| Mounting | Fixture Embedded |
| Location Rating | Damp |
| Included | Back Box (J-Box) |
| Warranty | 5-Year |
