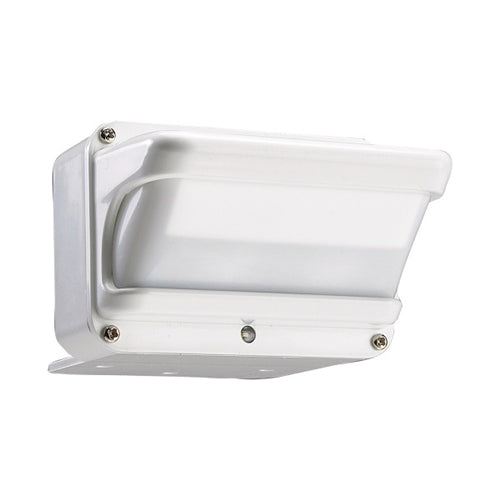

Wattstopper Wide Angle PIR Occupancy Sensor, 24VDC, White, FS-705-W
- ROCK SKU: WAT-FS-705-W
- UPC: 754182921836
- MFG Part #: FS-705-W
$88.00
$59.89
Product dimensions
-
Width:
2.7 IN
-
Height:
1.7 IN
-
Depth:
3.4 IN
-
Weight:
0.1 LBS
The FS-705 Wide Angle PIR Occupancy Sensor controls lighting based on occupancy utilizing passive infrared (PIR) technology. The sensor provides 180 degree coverage and is designed for locations that require wide angle occupancy detection; such as refrigerator and freezer cases; vending machines and aisleway displays.
- Dual pyro covers more than 40 detection zones
- Coverage pattern adjustable to 12 or 15 feet when mounted 7’6” above the floor
- Time delay selectable to one of four settings (30 seconds; 1 minute; 2 minutes or 8 minutes)
- 180 degree horizontal coverage pattern
- 70 degree vertical coverage pattern
- Low voltage
- LED indicator for occupancy detection
- DIP switch simplifies sensor adjustments
- The product meets the materials restrictions of RoHS
- Power Supply: 24 VDC from Wattstopper Power Pack
- Current consumption: 20mA @ 24VDC
| Brand | Wattstopper |
| Color | White |
| Product Series | FS-705 |
| Features | Adjustable Time Delay; Flame Retardant; Indicator Lights; Power Pack Required; Sensitivity Adjustment |
| Installation Location | Cabinet |
| Standard | UL; cUL; RoHS |
| Type | Sensor |
Product dimensions
-
Width:
2.7 IN
-
Height:
1.7 IN
-
Depth:
3.4 IN
-
Weight:
0.1 LBS
