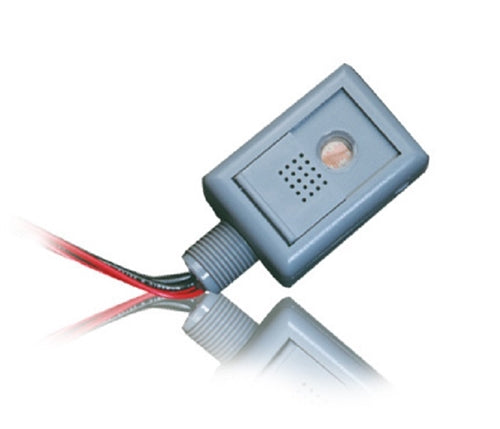

Wattstopper DC Low Voltage Photocell, EM-24D2
- ROCK SKU: WAT-EM-24D2
- UPC: 754182926848
- MFG Part #: EM-24D2
$166.00
$144.91
Product dimensions
-
Width:
2.64 IN
-
Height:
1.57 IN
-
Depth:
1.89 IN
-
Weight:
0 LBS
The EM-24A2 and EM-24D2 are low voltage photocells used for controlling exterior lighting. It works with Wattstopper power packs and lighting control panels (Lighting Integrator and LP series panels) by signaling a change in light levels to the panel.
- One set of normally open; isolated relay contacts; contacts are closed when sensed light level is below dark setpoint; open when light level is above light setpoint
- 8-second time delay and built-in setpoint deadband prevent cycling
- 1/2” threaded male conduit base for easy mounting on conduit fittings or junction boxes
- 1–15 footcandle range (10.8–161.5 lux)
- Isolated relay contacts 1 amp @ 30 VAC/VDC
- Power input: 24 VAC; 1 VA or 24 VDC; 1 VA
| Brand | Wattstopper |
| Manufacturer Part Number | EM-24D2 |
