Elite Lighting SR4 LED Shallow Plenum Downlight, 10W, CRI90, 0-10V, 1,396 lm, SR4-LED-1200L
- ROCK SKU: ELI-SR4-LED-1200L
- UPC:
- MFG Part #: SR4-LED-1200L
$0.00
$225.00

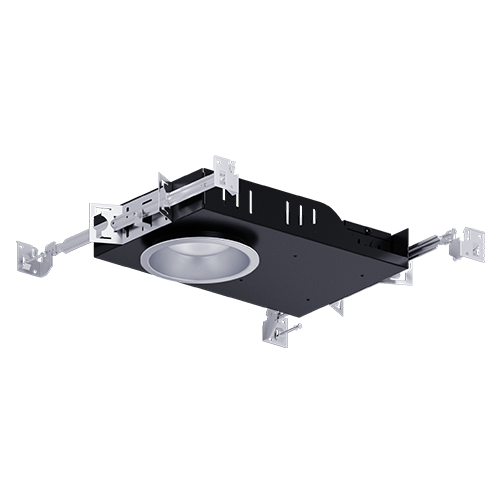

The Elite Lighting SR4-LED-1200L is a 4" round shallow plenum LED downlight engineered for commercial elevator lobbies, hospitality, and retail applications where restricted ceiling depth demands a low-profile housing. At 10W delivering 1,396 lumens with 90+ CRI, it features flicker-free 0-10V dimming to 1% and supports multiple control platforms including LUTH, EldoLED, DALI, and DMX. Available in five distributions (15°–60°), CCT options from 2700K–5000K with Dims to Warm, 2-step MacAdam ellipse color consistency, and a 102,000-hour rated life tested to IES LM79-08, LM80, TM-30, and TM-21. Offered in trim and trimless configurations on 120V.
| Watts | 10W |
| Lumens | 1,396 lm |
| Color Temperature | CCT Selectable (2700K–5000K) |
| CRI | 90+ Standard, 98+ Optional |
| Voltage | 120V |
| Dimming | 0-10V Dimming, Flicker-Free 1% |
| Rated Life | 102,000 Hours |
| Mounting | Round, Trim and Trimless |
