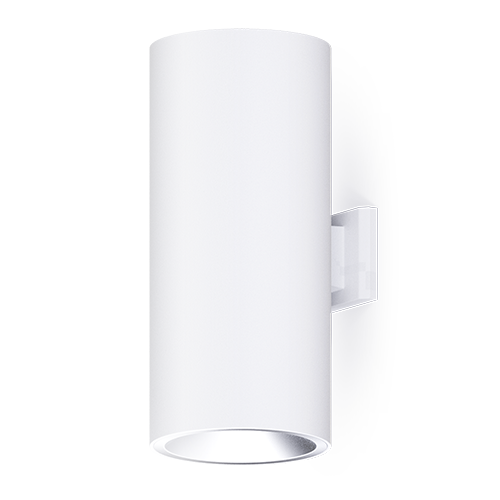

Elite Lighting SCH8 8 In. Architectural LED Cylinder, CRI90, 0-10V Dimming, Wall Mount, SCH8-LED-WM
- ROCK SKU: ELI-SCH8-LED-WM
- UPC:
- MFG Part #: SCH8-LED-WM
$295.00
The Elite Lighting SCH8-LED-WM is an 8-inch architectural LED cylinder wall mount designed for corporate office, hospitality, healthcare, academic, and retail applications requiring glare-controlled, even illumination. Available in lumen packages from 900 to 5000+ lumens with CRI 90+ standard (98+ optional) at 120V, it supports 0-10V flicker-free dimming to 1% and Lutron/EldoLED control compatibility. A 45° cutoff reflector with Solite frosted lens delivers UGR<19 performance across CCT options from 2700K–5000K, Tunable White, and Dims to Warm.
| Lumens | 900–5,000 lm (Custom packages available) |
| Color Temperature | 2700K–5000K (Tunable White, Dims to Warm, RGB+W available) |
| CRI | 90+ Standard, 98+ Optional |
| Voltage | 120V |
| Dimming | 0-10V, Flicker-Free 1% Dimming |
| Mount Type | Wall Mount |
| Finish | White, Black, Bronze, Silver (Custom RAL available) |
| UGR | <19 |
