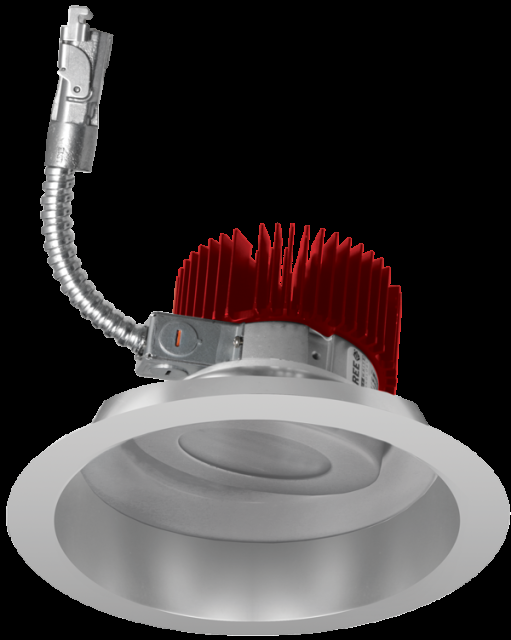

Elco Lighting 6" LED Light Engine Adjustable Trim Gen 2, 8.8-71.4W, 850-6000 lm, CCT Selectable, CRI93, E618L1230W2
- ROCK SKU: ELC-E618L1230W2
- MFG Part #: E618L1230W2
$125.91
The Elco Lighting E618L1230W2 is a Generation 2 6" LED light engine with adjustable trim for new construction, remodel, and retrofit ceiling installations on Elco's Laurel System frames, with an integral gimbal ring providing up to ±25° adjustability for sloped ceilings and wall wash applications. Scalable from 8.8–71.4W and 850–6000 lumens with field-selectable CCT and a CRI of 93+, it features a 60° beam angle. Wet location listed, USA designed and assembled, with a 50,000-hour L70 rated life; Gen 2 and Gen 1 frames are not cross compatible, and frame is sold separately.
| Watts | 8.8–71.4W (Field-Adjustable) |
| Lumens | 850–6,000 lm |
| Color Temperature | CCT Selectable (2700K–Sunset) |
| CRI | 93+ |
| Dimming | Triac/ELV or 0-10V |
| Beam Angle | 60° |
| Adjustability | ±125° Gimbal Ring |
| Wet Location | Listed |
| Rated Life | 50,000 hours L70 |
