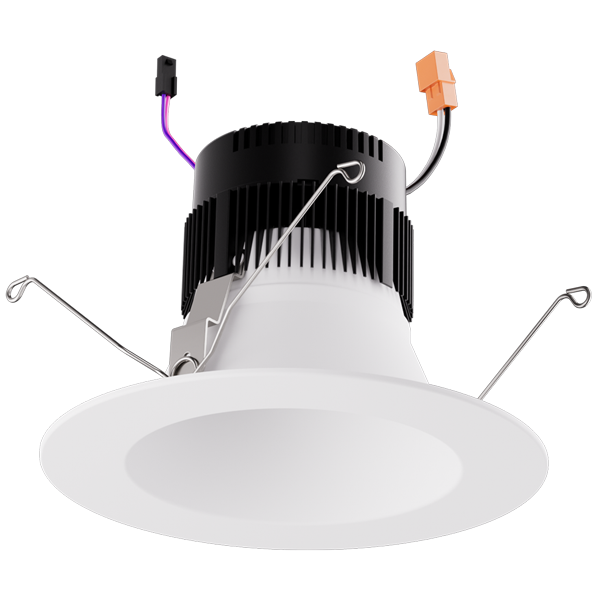

Elco Lighting 6" 0-10V LED Insert CCT/Lumen Switch, 13/19/24W, CCT Selectable, CRI90, 0-10V, EL760ICDXA
- ROCK SKU: ELC-EL760ICDXA
- UPC: 633999050932
- MFG Part #: EL760ICDXA
$26.10
The Elco Lighting EL760ICDXA is a 6" 0-10V LED insert with field-selectable 5-CCT and 3-lumen output switching, giving specifiers and installers a single-fixture solution covering 2700K–5000K color temperatures and 13W/19W/24W wattage steps via an on-module manual switch. Lumen output steps between 1000, 1500, and 2000 lm with 90+ CRI, driven by a 120/277V 0-10V dimmable driver. Rated for 50,000 hours L70, it is ETL listed for wet locations, ENERGY STAR certified, RoHS compliant, and California Title 24 JA8-2016-E qualified; compatible with new construction, remodel with ELCO Ply System housings, or retrofit use.
| Watts | 13/19/24W (Field-Selectable) |
| Lumens | 1,000–2,000 lm |
| Color Temperature | CCT Selectable (2700K/3000K/3500K/4000K/5000K) |
| CRI | 90+ |
| Voltage | 120/277V |
| Dimming | 0-10V |
| Rated Life | 50,000 hours L70 |
| Listings | cUL Listed, Energy Star, California Title 24 JA8-2016-E |
