Elco Lighting 3" IC Airtight Housing, E3LC10ICA2

ROCK SKU: ELC-E3LC10ICA2
MFG Part #: E3LC10ICA2

$53.91

Spec Sheet

Estimated Lead Time: 0-2 weeks

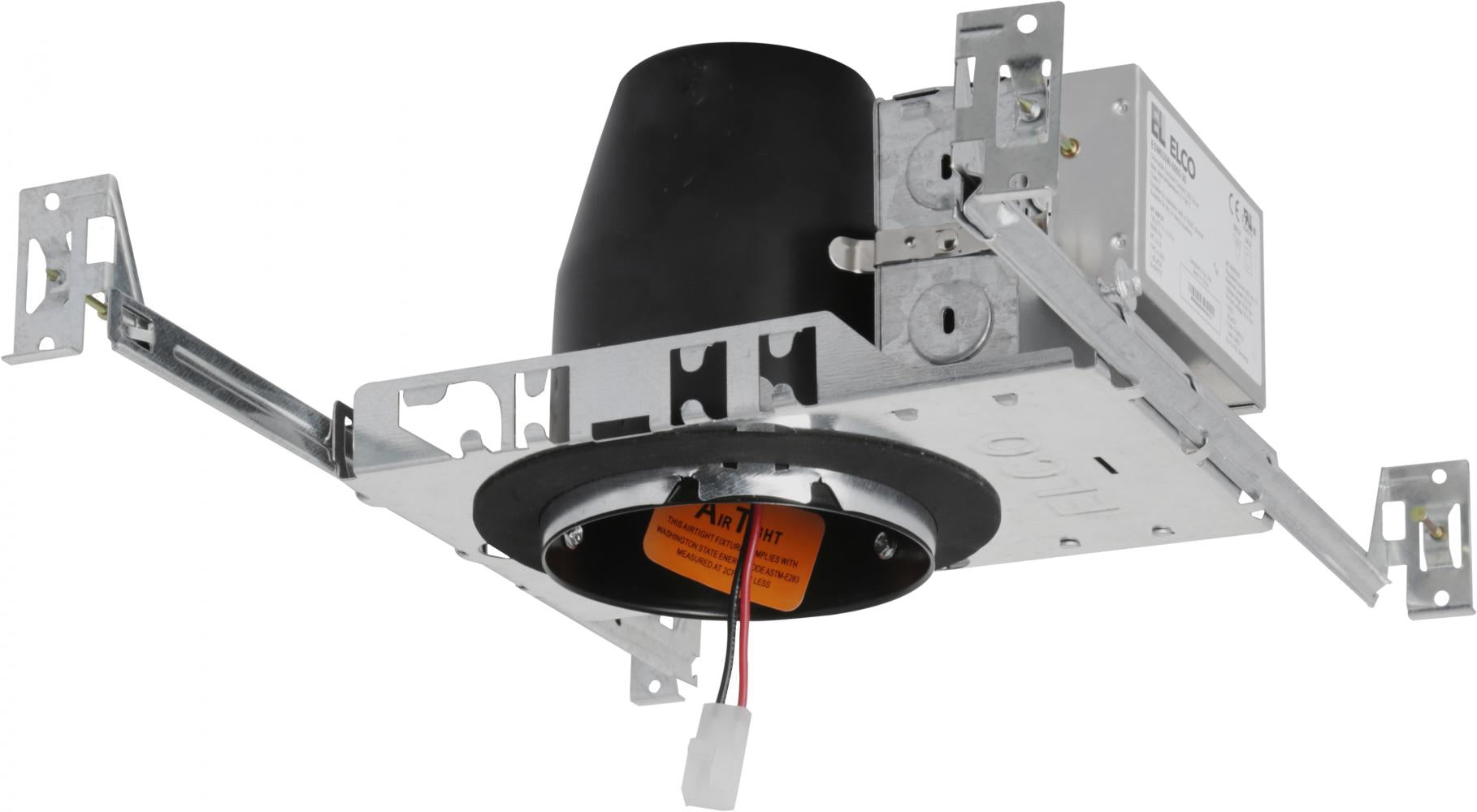

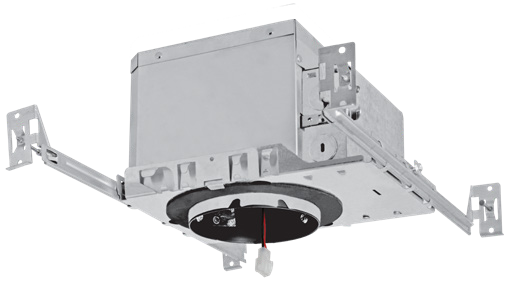

The Elco Lighting E3LC10ICA2 is a 3" new construction IC airtight double wall housing from the ELCO Cedar™ System. It is the housing half of a two-part Cedar™ fixture: select this housing, then a Cedar™ light engine with a matching 1000 lm rating.

Housing: 3" new construction LED IC airtight double wall housing
Light engine: Housing only. Pair with a Cedar™ System light engine rated 1000 lm, ordered under its own part number
Input voltage: 120V
Dimming: Triac/ELV, dims to 5%
Dimensions: 5 1/2" H x 12" L x 7 1/2" W
Ceiling thickness: Up to 1 1/2"
Joists: For ceiling plenums with 2x6 joists or taller
Airtight: Gasketed housing to restrict airflow in accordance with ASTM E-283 air-tight requirements
Hanger bars: Pre-installed; span up to 24"; repositionable 90°; integral T-bar slots
Junction box: Two 3/4", seven 1/2" trade size and one 3/8" knockouts; four pry-out slots for Romex
Listings: cUL Listed for direct contact with insulation and combustible material; cUL Listed for feed through; cUL Listed for damp location (wet location with select trims)
Emergency: Optional 90-minute battery backup; double wall housings require access from above for battery maintenance
Warranty: 5-year limited
Origin: Assembled in the USA

Specifications are taken from the ELCO 3" Cedar™ System spec sheets.
