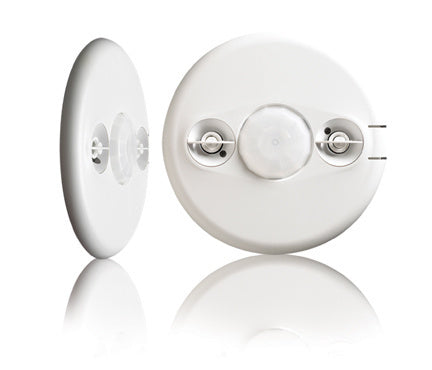

Wattstopper DT-300 Dual Tech Occupancy Sensor, 24VDC, 360°, Center Mount, USA, DT-300-U
- ROCK SKU: WAT-DT-300-U
- UPC: 754182926800
- MFG Part #: DT-300-U
The Wattstopper DT-300-U is a low-voltage ceiling-mount dual-technology occupancy sensor operating at 18–28 VDC/VAC with 360° coverage up to 1,000 sq ft at mounting heights of 8–12 ft, designed for commercial ceiling tile, 4-in octagonal J-box, or surface mounting. It combines PIR and patented 40 kHz ultrasonic diffusion detection, includes an isolated relay output compatible with BZ Power Packs and Wattstopper PLUS Sensor Interface Modules, and features DIP-switch adjustable time delays (30 sec to 30 min), light level sensing (10–300 fc), test mode, and walk-through mode. Listed to UL, cUL; BAA/TAA compliant; USA manufactured; 5-year warranty.
| Voltage | 18–28 VDC/VAC |
| Current Draw | 25 mA |
| Sensor Type | Dual Technology (PIR + Ultrasonic) |
| Coverage | 1000 sq ft, 360°, 8–12 ft mounting height |
| Features | Isolated Relay, Adjustable Time Delay, Light Level Sensor (10–300 fc), Test Mode, Walkthrough Mode |
| Timer Duration | 30 Seconds, 5–30 Minutes |
| Mounting | Ceiling Tile, J-Box, Surface |
| Certification | UL, cUL, BAA/TAA Compliant, USA-Made |
