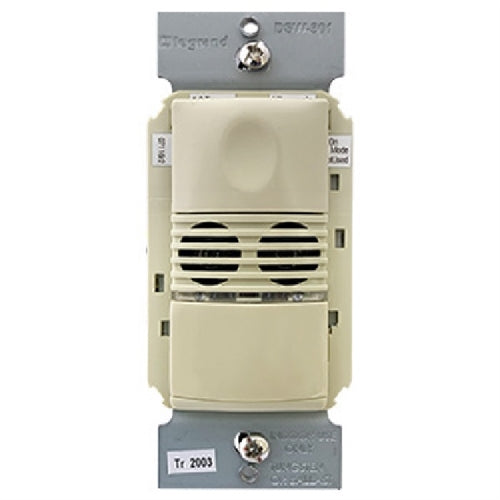

Wattstopper Dual Tech Wall Switch Occupancy Sensor, 120/277V, Light Almond, DSW-301-LA
- ROCK SKU: WAT-DSW-301-LA
- UPC: 754182935420
- MFG Part #: DSW-301-LA
$83.28
Product dimensions
-
Width:
2.73 IN
-
Height:
1.75 IN
-
Depth:
1.81 IN
-
Weight:
0 LBS
The DSW-301 dual technology wall switch sensor turns lights OFF and ON based on occupancy. It combines the benefits of passive infrared (PIR) and ultrasonic detection technologies. The DSW-301 replaces existing wall switches and fits behind a standard decorator wall plate.
- Zero-crossing for long relay life
- Vandal resistant lens combines precise coverage with durability
- Selectable walk-through mode turns lights off three minutes after initial occupancy if no motion is detected after the first 30 seconds
- Test mode allows quick and easy adjustments
- Selectable audible alert for impending shutoff
- In automatic mode; sensor returns automatically to Auto-ON after lights are turned off manually; ideal for presentations
- Four occupancy logic options to customize control to meet application needs
- DSW-301: 120/240/240/277VAC; 50/60Hz; 1/4 hp @ 120VAC; 0-1000W ballast; LED; and tungsten @ 240/240/277VAC; 0-1200W ballast and LED
- DSW-301-347: 347VAC; 50/60Hz; 1/4 hp; 0-1500W ballast and LED
- Time delays: 5; 15 or 30 minutes; walk-through; testmode/20 minutes
- Sensitivity adjustment: PIR (high/low); Ultrasonic (fully variable)
| Brand | Wattstopper |
| Manufacturer Part Number | DSW-301-LA |
| Color | Light Almond |
