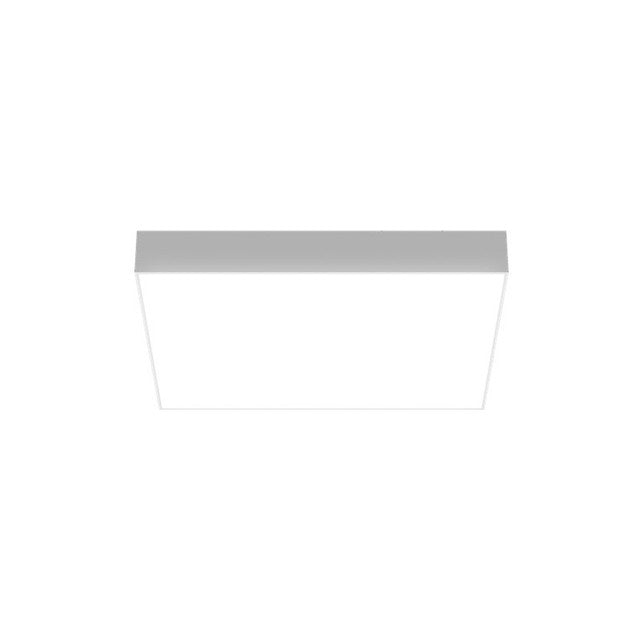

DMF Lighting 9 Watt 4" Square LED Surface Mount Light, 2700K, 750 Lumens, 0-10V Dimming, 120-277V, DRD5S4S07927O

$79.50

Product dimensions

  • Width:

  • Height:

  • Depth:

  • Weight:

The DRD5S series of LED surface mount downlights by DMF Lighting are an excellent choice to provide your general ceiling downlighting application with long lasting; energy efficient LED illumination. These fixtures are versatile in their installation possibilities and are suitable for either new construction or retrofit installations; as they easily install into most existing metallic octagonal and non-metallic round junction boxes. Combine with the Surface Frame Octagonal Junction Box (sold separately) to provide fire; sound; air-tight and insulated contact ratings as well as innovative features such as tool free height adjustments. Their integrated one-piece design removes driver installation issues; and their thin 0.6" deep profile and edgeless aesthetic allow these fixtures to blend seamlessly into the ceiling with minimal visual profile. Their high CRI of 90+ means you'll enjoy true color rendering in the area of illumination from the specialized lens that transmits clear; beautiful light with a subtle diffusion. Watch the video below to learn more!


  • 120V operation
  • 0-10V dimmable

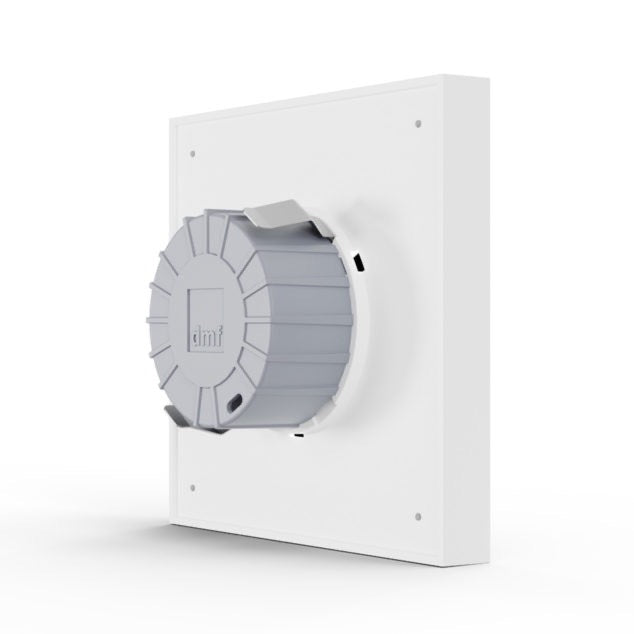

  • Installs into most existing metallic octagonal and non-metallic round junction boxes
  • Install into the DMF Surface Frame Octagonal Junction Box (sold separately) to provide fire (when installed in fire-rated assemblies); sound; air-tight and insulated contact ratings
  • Snaps into place for easy installation that is completely flush with the ceiling
  • One-piece design with proprietary integrated driver
  • UL approved for use in closets
  • High CRI of 90+ for true color rendering
  • Wet location rated
  • Energy Star
  • Title-24 JA8 compliant
Lumens 750 Lumens
Wattage 9 Watts
Input Voltage 120-277V
Dimmable 0-10V
Color Temperature 2700K
Downlight Type Housing Required; J-Box Mount; Standard Residential
Color White
Lamp / Base Type Integrated LED
Rated Hours 50;000 Hours
Min Operating Temp -4 Degrees F
CRI 90+
Special Features Wet Location Rated; Energy Star Rated; Title 20 / 24 Compliant

Product dimensions

  • Width:

  • Height:

  • Depth:

  • Weight:
