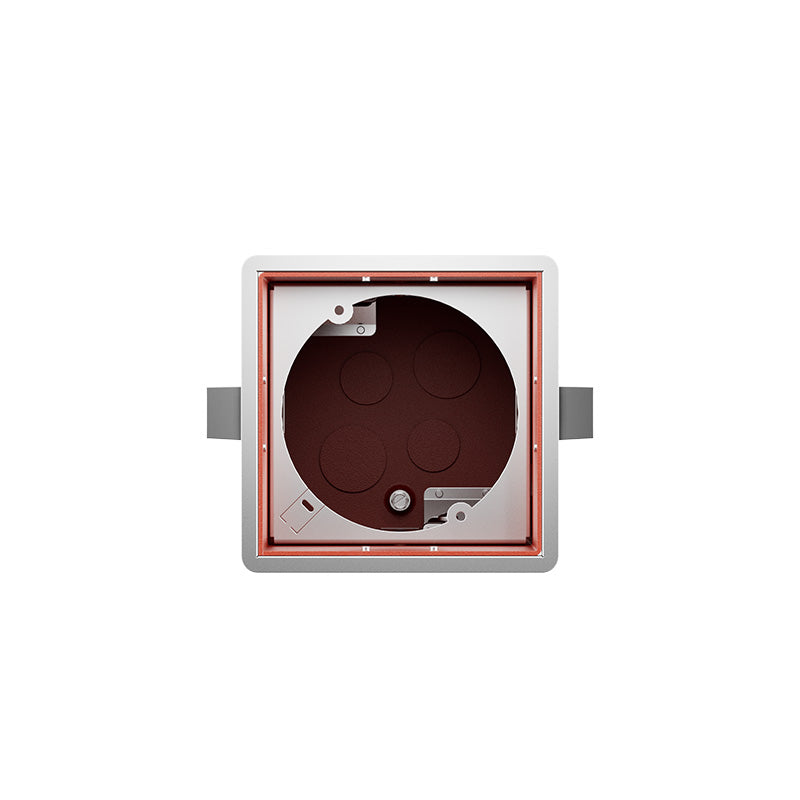

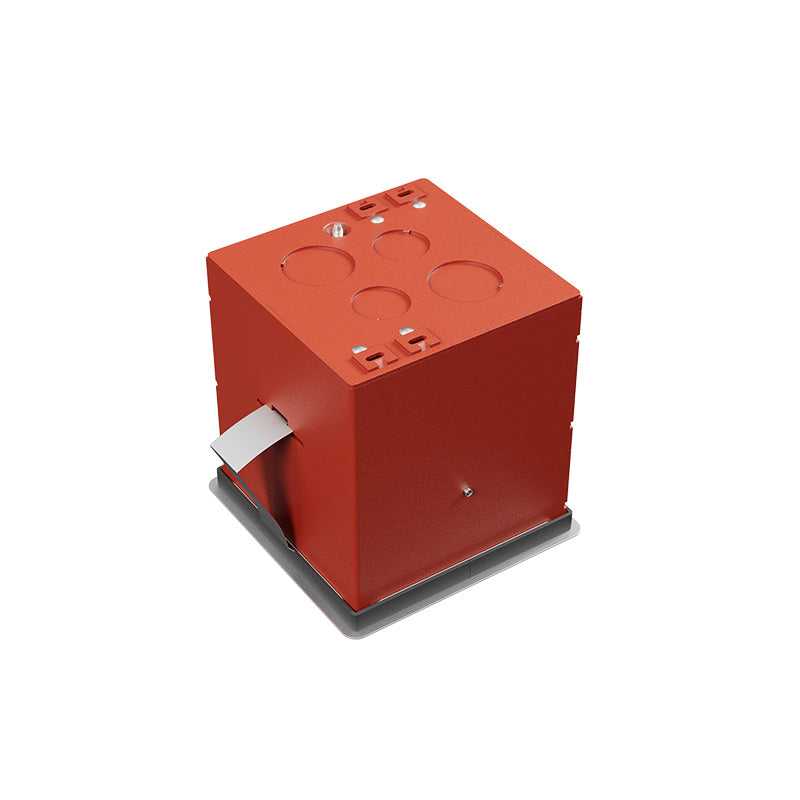

DMF Lighting M-Series 4" Square Remodel Fire Rated Housing, M4RMSF
- ROCK SKU: DMF-M4RMSF
- UPC: 648715395457
- MFG Part #: M4RMSF
$65.00
Estimated Lead Time: 0-2 weeks
The DMF Lighting M Series remodel housing is the square 4" fire-rated member of the modular DRD system. It installs as a housing only: the DRD light module and M Series trim are ordered separately, so output, colour temperature and trim finish are chosen independently of the housing.
Specifications
| Aperture | 4" |
|---|---|
| Shape | Square |
| Installation | Remodel |
| Rating | Fire Rated |
| Input Voltage | 120/277V, 50/60Hz |
| Cutout | 4" (102mm) square opening |
| Ceiling Thickness | 5/8" (16mm) up to 1 1/4" (32mm) |
| Mounting | Pre-installed mounting spring clips |
| Junction Box | Equipped with 8 knockouts: four 1/2" trade size knockouts on side, two 3/4" and two 1/2" trade size knockouts on top and four romex knockouts on top. |
| Listings | Metallic outlet box certified UL514A, code compliant for use in appropriate fire-rated assemblies for up to 2-hours, STC/IIC Sound Rated, ASTM E283 certified Air Tight, IC (Insulation Contact) Rated, Suitable for Use in Air-Handling Space (Complies with UL2043) |
| Trim Compatibility | Flanged Trims Only |
| Warranty | 5 year limited warranty |
Housing only. Requires a DRD module and an M4TR trim to form a complete fixture.
| APERTURE | 4" |
| SHAPE | Square |
| INSTALLATION | Remodel |
| RATING | Fire Rated |
| INPUT VOLTAGE | 120/277V, 50/60Hz |
| CUTOUT | 4" (102mm) square opening |
| CEILING | 5/8" (16mm) up to 1 1/4" (32mm) |
| MOUNTING | Pre-installed mounting spring clips |
| JUNCTION BOX | Equipped with 8 knockouts: four 1/2" trade size knockouts on side, two 3/4" and two 1/2" trade size knockouts on top and four romex knockouts on top. |
| LISTINGS | Metallic outlet box certified UL514A, code compliant for use in appropriate fire-rated assemblies for up to 2-hours, STC/IIC Sound Rated, ASTM E283 certified Air Tight, IC (Insulation Contact) Rated, Suitable for Use in Air-Handling Space (Complies with UL2043) |
