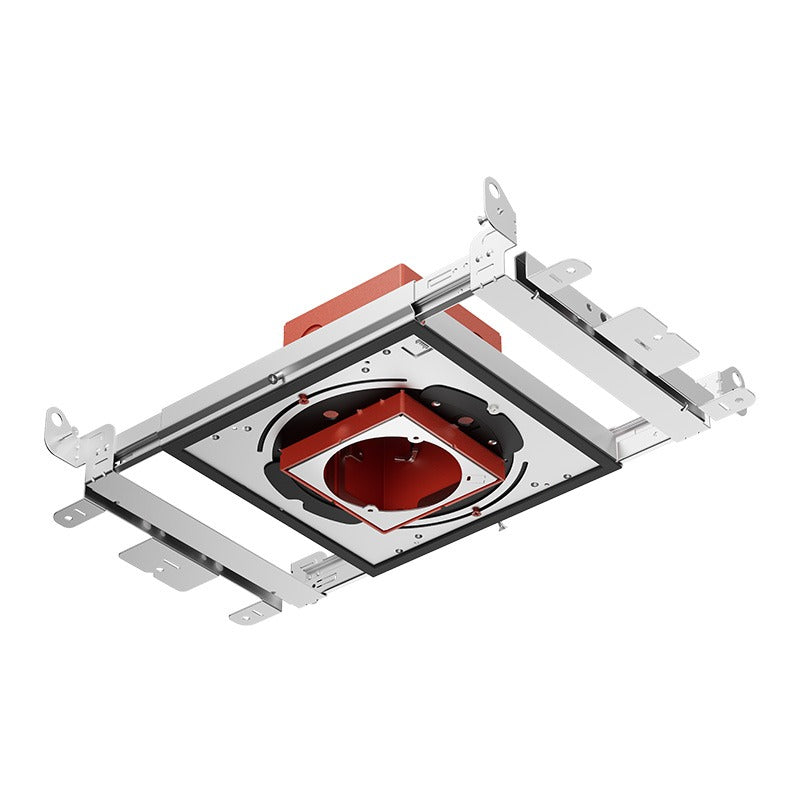

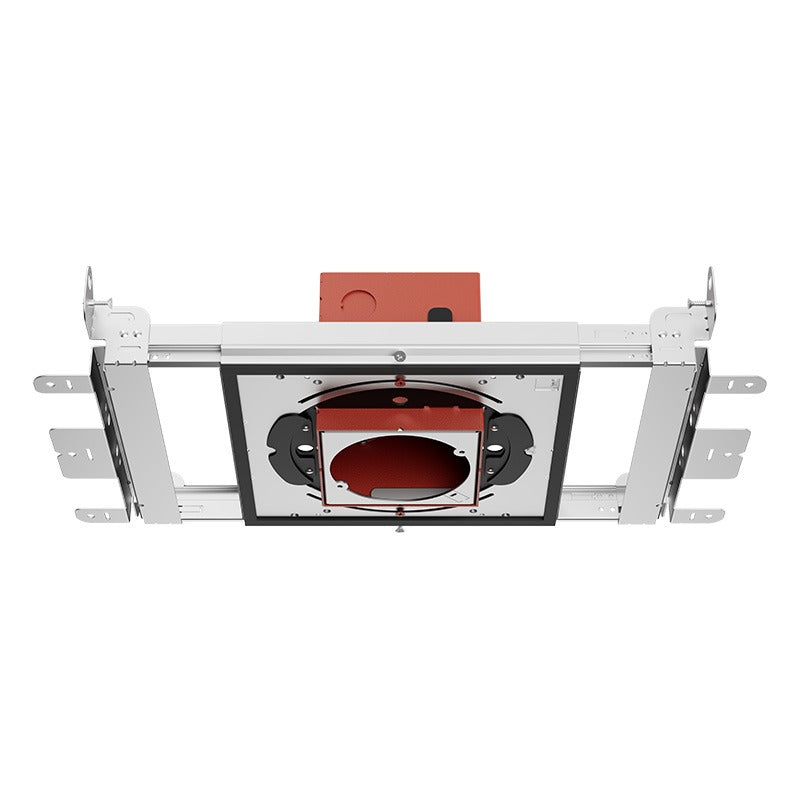

DMF Lighting M-Series 4" Square New Construction Fire Rated Housing, M4NCSF

ROCK SKU: DMF-M4NCSF
UPC: 648715395433
MFG Part #: M4NCSF

$65.00

Spec Sheet

Estimated Lead Time: 0-2 weeks

The DMF Lighting M Series new construction housing is the square 4" fire-rated member of the modular DRD system. It installs as a housing only: the DRD light module and M Series trim are ordered separately, so output, colour temperature and trim finish are chosen independently of the housing.

Specifications

Aperture	4"
Shape	Square
Installation	New Construction
Rating	Fire Rated
Input Voltage	120/277V, 50/60Hz
Cutout	4" (102mm) square opening
Ceiling Thickness	Standard Version (Deep): 1/2" (13mm) to 1 3/4" (44mm)
Mounting	Adjustable bar hangers for 10" (254mm) to 24" (610mm) joist spacing.

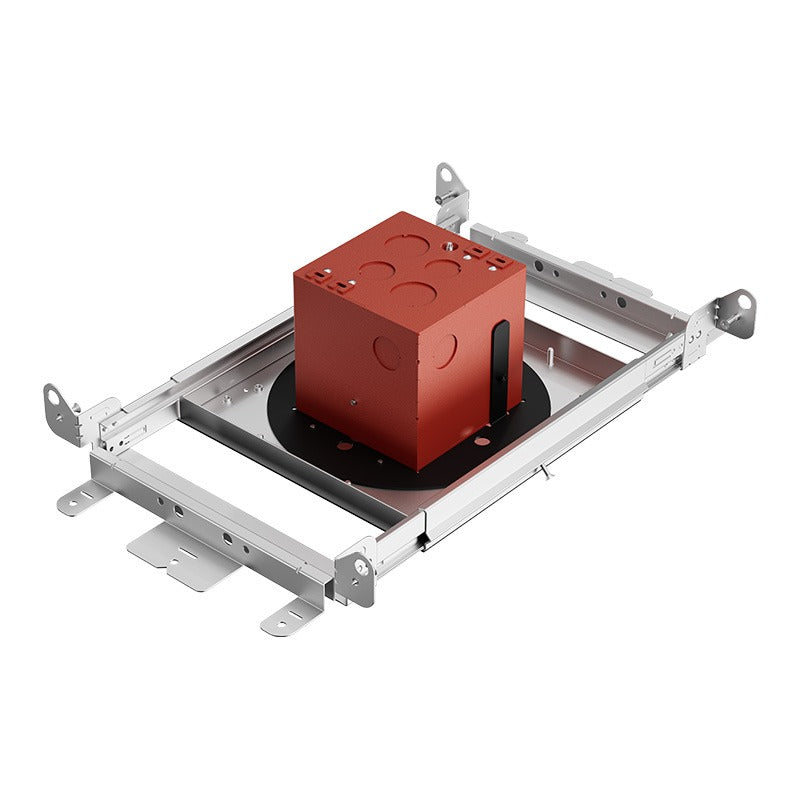

Junction Box	Equipped with 12 knockouts: four 1/2" trade size knockouts on side, two 3/4" and two 1/2" trade size knockouts on top and four romex knockouts on top.
Listings	Metallic outlet box certified UL514A, code compliant for use in appropriate fire-rated assemblies for up to 2-hours, STC/IIC Sound Rated, ASTM E283 certified Air Tight, IC (Insulation Contact) Rated, Suitable for Use in Air-Handling Space (Complies with UL2043)
Warranty	5 year limited warranty

Housing only. Requires a DRD module and an M4TR trim to form a complete fixture.

APERTURE	4"
SHAPE	Square
INSTALLATION	New Construction
RATING	Fire Rated
INPUT VOLTAGE	120/277V, 50/60Hz
CUTOUT	4" (102mm) square opening
CEILING	Standard Version (Deep): 1/2" (13mm) to 1 3/4" (44mm)
MOUNTING	Adjustable bar hangers for 10" (254mm) to 24" (610mm) joist spacing.
JUNCTION BOX	Equipped with 12 knockouts: four 1/2" trade size knockouts on side, two 3/4" and two 1/2" trade size knockouts on top and four romex knockouts on top.
LISTINGS	Metallic outlet box certified UL514A, code compliant for use in appropriate fire-rated assemblies for up to 2-hours, STC/IIC Sound Rated, ASTM E283 certified Air Tight, IC (Insulation Contact) Rated, Suitable for Use in Air-Handling Space (Complies with UL2043)
